LED 7 Segment display
| 7 segment led display >> DOUBLE DIGITS >> 1.50 inch double seven segment led display
Specification
|
| Series | BL-D150A-21,BL-D150B-21 |
| Apperance: | |
| Dimension: | 38.0*44.0mm |
| Datasheet: |  |
|
|
1.50 inch double seven segment led display
1.50 inch digit height(35.0mm)
widthheight: 38.0*44.0mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available

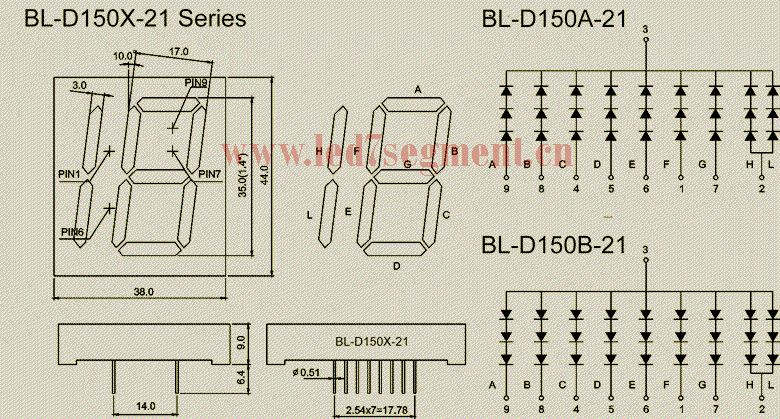

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-D150A-21H | BL-D150B-21H | Red | 700 | 2.25 | 2.6 | 12 | | BL-D150A-21UR | BL-D150B-21UR | Ultra Red | 660 | 1.85 | 2.2 | 160 | | BL-D150A-21S | BL-D150B-21S | Hi Red | 660 | 1.85 | 2.2 | 120 | | BL-D150A-21D | BL-D150B-21D | Super Red | 660 | 1.85 | 2.2 | 140 | | BL-D150A-21E | BL-D150B-21E | Orange | 635 | 2.1 | 2.5 | 60 | | BL-D150A-21UE | BL-D150B-21UE | Ultra Orange | 630 | 2.1 | 2.5 | 120 | | BL-D150A-21UY | BL-D150B-21UY | Ultra Yellow | 590 | 2.1 | 2.5 | 75 | | BL-D150A-21Y | BL-D150B-21Y | Yellow | 585 | 2.1 | 2.5 | 60 | | BL-D150A-21UG | BL-D150B-21UG | Ultra Green | 574 | 2.2 | 2.5 | 75 | | BL-D150A-21G | BL-D150B-21G | Green | 570 | 2.2 | 2.5 | 55 | | BL-D150A-21PG | BL-D150B-21PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 190 | | BL-D150A-21UB | BL-D150B-21UB | ultra Blue | 470 | 3.8 | 4.5 | 88 | | BL-D150A-21B | BL-D150B-21B | ultra Blue | 470 | 3.8 | 4.5 | 50 | |
