LED 7 Segment display
| 7 segment led display >> DOUBLE DIGITS >> 0.50 inch double seven segment led display
Specification
|
| Series | BL-D50A-23,BL-D50B-23 |
| Apperance: | 0.50 inch digit height(12.70mm) |
| Dimension: | 25.00*19.00mm |
| Datasheet: |  |
|
|
0.50 inch double seven segment led display
0.50 inch digit height(12.70mm)
widthheight:25.0019.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Catego

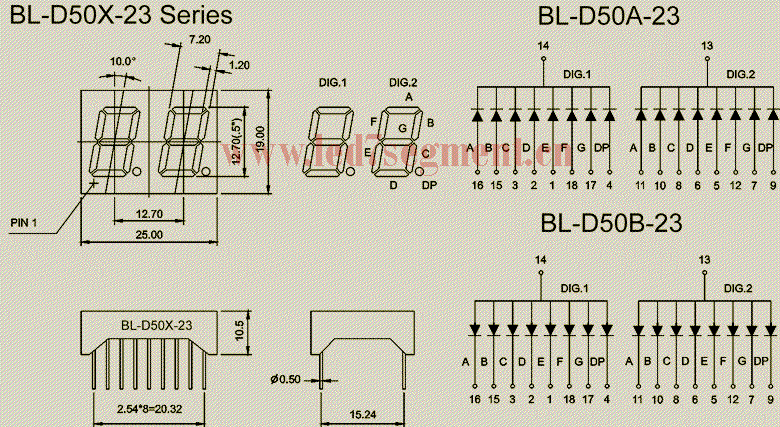

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-D50A-23H | BL-D50B-23H | Red | 700 | 2.25 | 2.6 | 10 | | BL-D50A-23UR | BL-D50B-23UR | Ultra Red | 660 | 1.85 | 2.2 | 160 | | BL-D50A-23S | BL-D50B-23S | Hi Red | 660 | 1.85 | 2.2 | 100 | | BL-D50A-23D | BL-D50B-23D | Super Red | 660 | 1.85 | 2.2 | 190 | | BL-D50A-23E | BL-D50B-23E | Orange | 635 | 2.1 | 2.5 | 55 | | BL-D50A-23UE | BL-D50B-23UE | Ultra Orange | 630 | 2.1 | 2.5 | 115 | | BL-D50A-23UY | BL-D50B-23UY | Ultra Yellow | 590 | 2.1 | 2.5 | 115 | | BL-D50A-23Y | BL-D50B-23Y | Yellow | 585 | 2.1 | 2.5 | 55 | | BL-D50A-23UG | BL-D50B-23UG | Ultra Green | 574 | 2.2 | 2.5 | 75 | | BL-D50A-23G | BL-D50B-23G | Green | 570 | 2.2 | 2.5 | 50 | | BL-D50A-23PG | BL-D50B-23PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 185 | | BL-D50A-23UB | BL-D50B-23UB | ultra Blue | 470 | 3.8 | 4.5 | 75 | | BL-D50A-23B | BL-D50B-23B | ultra Blue | 470 | 3.8 | 4.5 | 45 | | BL-D50A-23W | BL-D50B-23W | Ultra White | / | 2.7 | 4.2 | 75 | |
