LED 7 Segment display
| 7 segment led display >> DOUBLE DIGITS >> 0.50 inch double seven segment led display
Specification
|
| Series | BL-D50G-21,BL-D50H-21 |
| Apperance: | 0.50 inch digit height(12.70mm) |
| Dimension: | 25.00*19.00mm |
| Datasheet: |  |
|
|
0.50 inch double seven segment led display
0.50 inch digit height(12.70mm)
widthheight:25.0019.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Catego

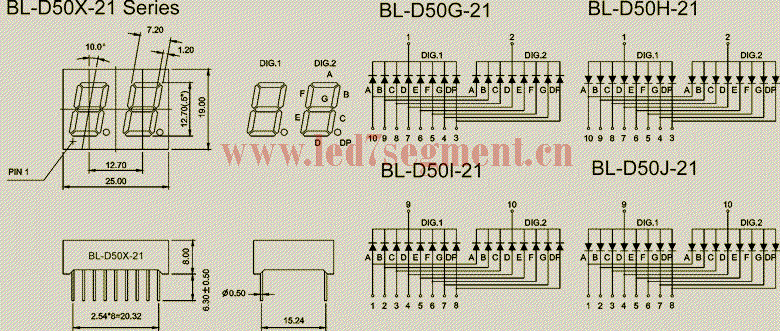

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-D50G-21H | BL-D50H-21H | Red | 700 | 2.25 | 2.6 | 10 | | BL-D50G-21UR | BL-D50H-21UR | Ultra Red | 660 | 1.85 | 2.2 | 160 | | BL-D50G-21S | BL-D50H-21S | Hi Red | 660 | 1.85 | 2.2 | 100 | | BL-D50G-21D | BL-D50H-21D | Super Red | 660 | 1.85 | 2.2 | 190 | | BL-D50G-21E | BL-D50H-21E | Orange | 635 | 2.1 | 2.5 | 55 | | BL-D50G-21UE | BL-D50H-21UE | Ultra Orange | 630 | 2.1 | 2.5 | 115 | | BL-D50G-21UY | BL-D50H-21UY | Ultra Yellow | 590 | 2.1 | 2.5 | 115 | | BL-D50G-21Y | BL-D50H-21Y | Yellow | 585 | 2.1 | 2.5 | 55 | | BL-D50G-21UG | BL-D50H-21UG | Ultra Green | 574 | 2.2 | 2.5 | 75 | | BL-D50G-21G | BL-D50H-21G | Green | 570 | 2.2 | 2.5 | 50 | | BL-D50G-21PG | BL-D50H-21PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 185 | | BL-D50G-21UB | BL-D50H-21UB | ultra Blue | 470 | 3.8 | 4.5 | 75 | | BL-D50G-21B | BL-D50H-21B | ultra Blue | 470 | 3.8 | 4.5 | 45 | | BL-D50G-21W | BL-D50H-21W | Ultra White | / | 2.7 | 4.2 | 75 | |
