LED 7 Segment display
| 7 segment led display >> DOUBLE DIGITS >> 0.56 inch double seven segment led display
Specification
|
| Series | BL-D56A-24,BL-D56B-24 |
| Apperance: | 0.56 inch digit height(14.20mm) |
| Dimension: | 25.00*17.10mm |
| Datasheet: |  |
|
|
0.56 inch double seven segment led display
0.56 inch digit height(14.20mm)
widthheight:25.0017.10mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Catego

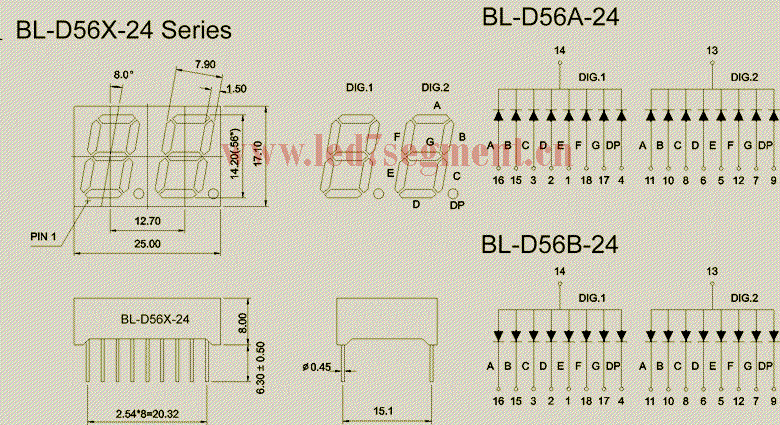

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-D56A-24H | BL-D56B-24H | Red | 700 | 2.25 | 2.6 | 12 | | BL-D56A-24UR | BL-D56B-24UR | Ultra Red | 660 | 1.85 | 2.2 | 160 | | BL-D56A-24S | BL-D56B-24S | Hi Red | 660 | 1.85 | 2.2 | 120 | | BL-D56A-24D | BL-D56B-24D | Super Red | 660 | 1.85 | 2.2 | 140 | | BL-D56A-24E | BL-D56B-24E | Orange | 635 | 2.1 | 2.5 | 60 | | BL-D56A-24UE | BL-D56B-24UE | Ultra Orange | 630 | 2.1 | 2.5 | 120 | | BL-D56A-24UY | BL-D56B-24UY | Ultra Yellow | 590 | 2.1 | 2.5 | 75 | | BL-D56A-24Y | BL-D56B-24Y | Yellow | 585 | 2.1 | 2.5 | 60 | | BL-D56A-24UG | BL-D56B-24UG | Ultra Green | 574 | 2.2 | 2.5 | 75 | | BL-D56A-24G | BL-D56B-24G | Green | 570 | 2.2 | 2.5 | 55 | | BL-D56A-24PG | BL-D56B-24PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 190 | | BL-D56A-24UB | BL-D56B-24UB | ultra Blue | 470 | 3.8 | 4.5 | 88 | | BL-D56A-24B | BL-D56B-24B | ultra Blue | 470 | 3.8 | 4.5 | 50 | | BL-D56A-24W | BL-D56B-24W | Ultra White | / | 2.7 | 4.2 | 88 | |
