LED 7 Segment display
| 7 segment led display >> FOUR DIGITS >> 0.28 inch four seven segment led display
Specification
|
| Series | BL-Q28A-41,BL-Q28B-41 |
| Apperance: | 0.28 inch digit height(7.00mm) |
| Dimension: | 32.20*10.10mm |
| Datasheet: |  |
|
|
0.28 inch four seven segment led display
0.28 inch digit height(7.00mm)
widthheight:32.2010.10mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categoriz

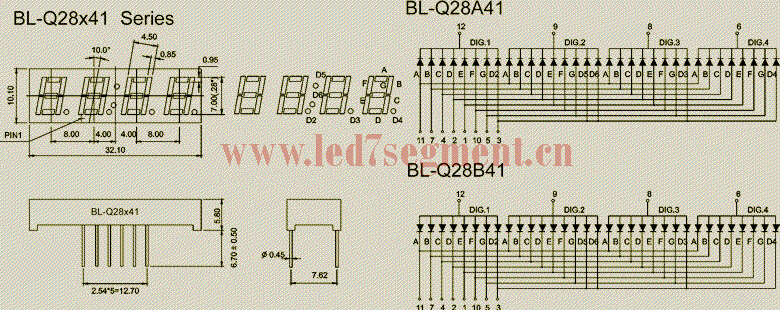

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-Q28A-41H | BL-Q28B-41H | Red | 700 | 2.25 | 2.6 | 9.5 | | BL-Q28A-41UR | BL-Q28B-41UR | Ultra Red | 660 | 1.85 | 2.2 | 155 | | BL-Q28A-41S | BL-Q28B-41S | Hi Red | 660 | 1.85 | 2.2 | 95 | | BL-Q28A-41D | BL-Q28B-41D | Super Red | 660 | 1.85 | 2.2 | 110 | | BL-Q28A-41E | BL-Q28B-41E | Orange | 635 | 2.1 | 2.5 | 105 | | BL-Q28A-41UE | BL-Q28B-41UE | Ultra Orange | 630 | 2.1 | 2.5 | 110 | | BL-Q28A-41UY | BL-Q28B-41UY | Ultra Yellow | 590 | 2.1 | 2.5 | 120 | | BL-Q28A-41Y | BL-Q28B-41Y | Yellow | 585 | 2.1 | 2.5 | 105 | | BL-Q28A-41UG | BL-Q28B-41UG | Ultra Green | 574 | 2.2 | 2.5 | 130 | | BL-Q28A-41G | BL-Q28B-41G | Green | 570 | 2.2 | 2.5 | 110 | | BL-Q28A-41PG | BL-Q28B-41PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 190 | | BL-Q28A-41UB | BL-Q28B-41UB | ultra Blue | 470 | 3.8 | 4.5 | 120 | | BL-Q28A-41B | BL-Q28B-41B | ultra Blue | 470 | 3.8 | 4.5 | 90 | | BL-Q28A-41W | BL-Q28B-41W | Ultra White | / | 2.7 | 4.2 | 140 | |
