LED 7 Segment display
| 7 segment led display >> THREE DIGITS >> 0.36 inch three seven segment led display
Specification
|
| Series | BL-T36A-31,BL-T36B-31 |
| Apperance: | 0.36 inch digit height(9.20mm) |
| Dimension: | 22.50*14.00mm |
| Datasheet: |  |
|
|
0.36 inch three seven segment led display
0.36 inch digit height(9.20mm)
widthheight:22.5014.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categori

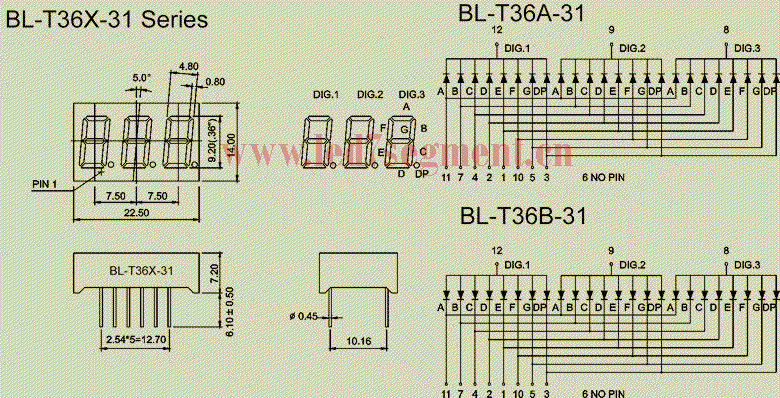

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-T36A-31H | BL-T36B-31H | Red | 700 | 2.25 | 2.6 | 9.5 | | BL-T36A-31UR | BL-T36B-31UR | Ultra Red | 660 | 1.85 | 2.2 | 155 | | BL-T36A-31S | BL-T36B-31S | Hi Red | 660 | 1.85 | 2.2 | 95 | | BL-T36A-31D | BL-T36B-31D | Super Red | 660 | 1.85 | 2.2 | 125 | | BL-T36A-31E | BL-T36B-31E | Orange | 635 | 2.1 | 2.5 | 58 | | BL-T36A-31UE | BL-T36B-31UE | Ultra Orange | 630 | 2.1 | 2.5 | 85 | | BL-T36A-31UY | BL-T36B-31UY | Ultra Yellow | 590 | 2.1 | 2.5 | 68 | | BL-T36A-31Y | BL-T36B-31Y | Yellow | 585 | 2.1 | 2.5 | 58 | | BL-T36A-31UG | BL-T36B-31UG | Ultra Green | 574 | 2.2 | 2.5 | 115 | | BL-T36A-31G | BL-T36B-31G | Green | 570 | 2.2 | 2.5 | 50 | | BL-T36A-31PG | BL-T36B-31PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 175 | | BL-T36A-31UB | BL-T36B-31UB | ultra Blue | 470 | 3.8 | 4.5 | 80 | | BL-T36A-31B | BL-T36B-31B | ultra Blue | 470 | 3.8 | 4.5 | 45 | | BL-T36A-31W | BL-T36B-31W | Ultra White | / | 2.7 | 4.2 | 120 | |
