LED 7 Segment display
| 7 segment
led display >> DOUBLE
DIGITS >> 0.30 inch double seven segment led display
Specification
|
| Series | BL-D30E-21,BL-D30F-21 |
| Apperance: | 0.30 inch digit height(7.62mm) |
| Dimension: | 15.50*15.00mm |
| Datasheet: |  |
|
|
0.30 inch double seven segment led display
0.30 inch digit height(7.62mm)
widthheight: 15.5015.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Catego

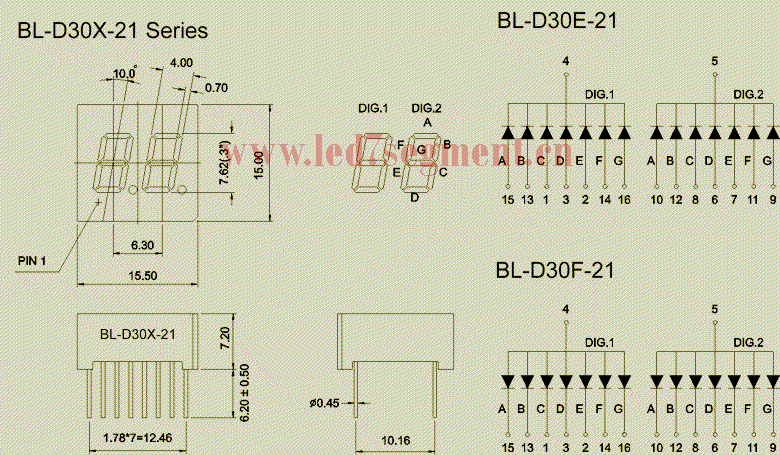

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-D30E-21H | BL-D30F-21H | Red | 700 | 2.25 | 2.6 | 10 | | BL-D30E-21UR | BL-D30F-21UR | Ultra Red | 660 | 1.85 | 2.2 | 150 | | BL-D30E-21S | BL-D30F-21S | Hi Red | 660 | 1.85 | 2.2 | 100 | | BL-D30E-21D | BL-D30F-21D | Super Red | 660 | 1.85 | 2.2 | 110 | | BL-D30E-21E | BL-D30F-21E | Orange | 635 | 2.1 | 2.5 | 45 | | BL-D30E-21UE | BL-D30F-21UE | Ultra Orange | 630 | 2.1 | 2.5 | 120 | | BL-D30E-21UY | BL-D30F-21UY | Ultra Yellow | 590 | 2.1 | 2.5 | 120 | | BL-D30E-21Y | BL-D30F-21Y | Yellow | 585 | 2.1 | 2.5 | 55 | | BL-D30E-21UG | BL-D30F-21UG | Ultra Green | 574 | 2.2 | 2.5 | 90 | | BL-D30E-21G | BL-D30F-21G | Green | 570 | 2.2 | 2.5 | 45 | | BL-D30E-21PG | BL-D30F-21PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 180 | | BL-D30E-21UB | BL-D30F-21UB | ultra Blue | 470 | 3.8 | 4.5 | 70 | | BL-D30E-21B | BL-D30F-21B | ultra Blue | 470 | 3.8 | 4.5 | 48 | | BL-D30E-21W | BL-D30F-21W | Ultra White | / | 2.7 | 4.2 | 70 | |
