LED 7 Segment display

7 segment led display >> DOUBLE DIGITS >> 0.50 inch double seven segment led display

Specification

SeriesBL-D50A-22,BL-D50B-22
Apperance:0.50 inch digit height(12.70mm)
Dimension: 25.00*19.00mm
Datasheet:

0.50 inch double seven segment led display 0.50 inch digit height(12.70mm) widthheight:25.0019.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Catego

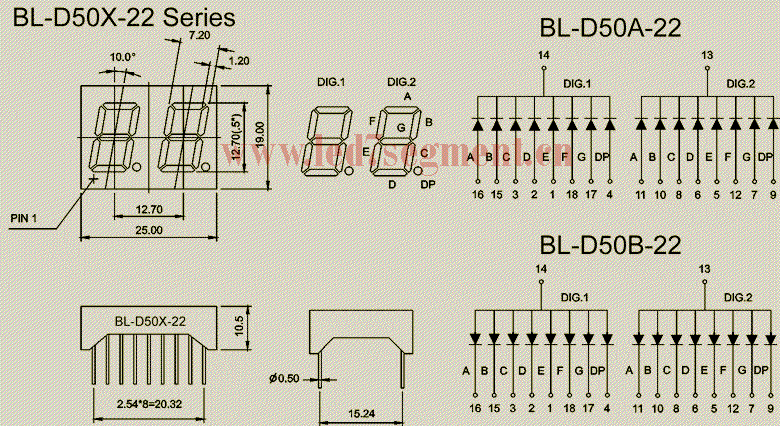

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-D50A-22H BL-D50B-22H Red 700 2.25 2.6 10
BL-D50A-22UR BL-D50B-22UR Ultra Red 660 1.85 2.2 160
BL-D50A-22S BL-D50B-22S Hi Red 660 1.85 2.2 100
BL-D50A-22D BL-D50B-22D Super Red 660 1.85 2.2 190
BL-D50A-22E BL-D50B-22E Orange 635 2.1 2.5 55
BL-D50A-22UE BL-D50B-22UE Ultra Orange 630 2.1 2.5 115
BL-D50A-22UY BL-D50B-22UY Ultra Yellow 590 2.1 2.5 115
BL-D50A-22Y BL-D50B-22Y Yellow 585 2.1 2.5 55
BL-D50A-22UG BL-D50B-22UG Ultra Green 574 2.2 2.5 75
BL-D50A-22G BL-D50B-22G Green 570 2.2 2.5 50
BL-D50A-22PG BL-D50B-22PG Ultra Pure Green 525 3.8 4.5 185
BL-D50A-22UB BL-D50B-22UB ultra Blue 470 3.8 4.5 75
BL-D50A-22B BL-D50B-22B ultra Blue 470 3.8 4.5 45
BL-D50A-22W BL-D50B-22W Ultra White / 2.7 4.2 75
