LED 7 Segment display
| 7 segment led display >> FOUR DIGITS >> 0.39 inch four seven segment led display
Specification
|
| Series | BL-Q39A-42,BL-Q39B-42 |
| Apperance: | 0.39 inch digit height(10.0mm) |
| Dimension: | 40.18*12.80mm |
| Datasheet: |  |
|
|
0.39 inch four seven segment led display
0.39 inch digit height(10.0mm)
widthheight:40.1812.80mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categoriz

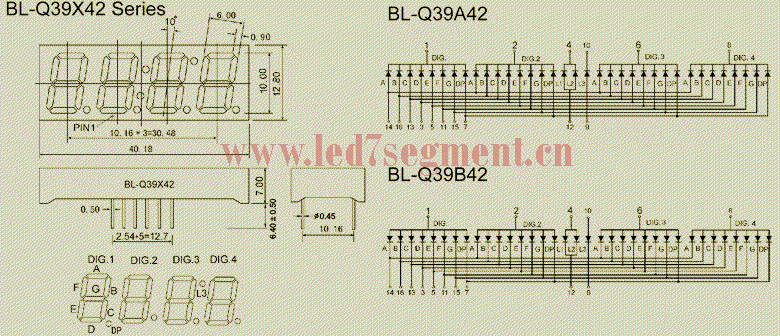

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-Q39A-42H | BL-Q39B-42H | Red | 700 | 2.25 | 2.6 | 10.5 | | BL-Q39A-42UR | BL-Q39B-42UR | Ultra Red | 660 | 1.85 | 2.2 | 160 | | BL-Q39A-42S | BL-Q39B-42S | Hi Red | 660 | 1.85 | 2.2 | 105 | | BL-Q39A-42D | BL-Q39B-42D | Super Red | 660 | 1.85 | 2.2 | 115 | | BL-Q39A-42E | BL-Q39B-42E | Orange | 635 | 2.1 | 2.5 | 115 | | BL-Q39A-42UE | BL-Q39B-42UE | Ultra Orange | 630 | 2.1 | 2.5 | 140 | | BL-Q39A-42UY | BL-Q39B-42UY | Ultra Yellow | 590 | 2.1 | 2.5 | 135 | | BL-Q39A-42Y | BL-Q39B-42Y | Yellow | 585 | 2.1 | 2.5 | 115 | | BL-Q39A-42UG | BL-Q39B-42UG | Ultra Green | 574 | 2.2 | 2.5 | 140 | | BL-Q39A-42G | BL-Q39B-42G | Green | 570 | 2.2 | 2.5 | 120 | | BL-Q39A-42PG | BL-Q39B-42PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 195 | | BL-Q39A-42UB | BL-Q39B-42UB | ultra Blue | 470 | 3.8 | 4.5 | 125 | | BL-Q39A-42B | BL-Q39B-42B | ultra Blue | 470 | 3.8 | 4.5 | 100 | | BL-Q39A-42W | BL-Q39B-42W | Ultra White | / | 2.7 | 4.2 | 160 | |
