LED 7 Segment display

7 segment led display >> FOUR DIGITS >> 0.39 inch four seven segment led display

Specification

SeriesBL-Q39A-44,BL-Q39B-44
Apperance:0.39 inch digit height(10.0mm)
Dimension: 40.0*12.6mm
Datasheet:

0.39 inch four seven segment led display 0.39 inch digit height(10.0mm) widthheight:40.012.6mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categoriz

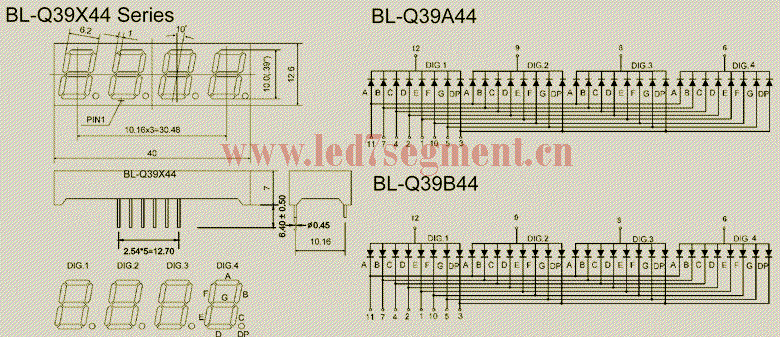

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-Q39A-44H BL-Q39B-44H Red 700 2.25 2.6 10.5
BL-Q39A-44UR BL-Q39B-44UR Ultra Red 660 1.85 2.2 160
BL-Q39A-44S BL-Q39B-44S Hi Red 660 1.85 2.2 105
BL-Q39A-44D BL-Q39B-44D Super Red 660 1.85 2.2 115
BL-Q39A-44E BL-Q39B-44E Orange 635 2.1 2.5 115
BL-Q39A-44UE BL-Q39B-44UE Ultra Orange 630 2.1 2.5 140
BL-Q39A-44UY BL-Q39B-44UY Ultra Yellow 590 2.1 2.5 135
BL-Q39A-44Y BL-Q39B-44Y Yellow 585 2.1 2.5 115
BL-Q39A-44UG BL-Q39B-44UG Ultra Green 574 2.2 2.5 140
BL-Q39A-44G BL-Q39B-44G Green 570 2.2 2.5 120
BL-Q39A-44PG BL-Q39B-44PG Ultra Pure Green 525 3.8 4.5 195
BL-Q39A-44UB BL-Q39B-44UB ultra Blue 470 3.8 4.5 125
BL-Q39A-44B BL-Q39B-44B ultra Blue 470 3.8 4.5 100
BL-Q39A-44W BL-Q39B-44W Ultra White / 2.7 4.2 160
