LED 7 Segment display

7 segment led display >> FOUR DIGITS >> 0.39 inch four seven segment led display

Specification

SeriesBL-Q39K-41,BL-Q39K-41
Apperance:0.39 inch digit height(9.90mm)
Dimension: 40.00*14.00mm
Datasheet:

0.39 inch four seven segment led display 0.39 inch digit height(9.90mm) widthheight:40.0014.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categoriz

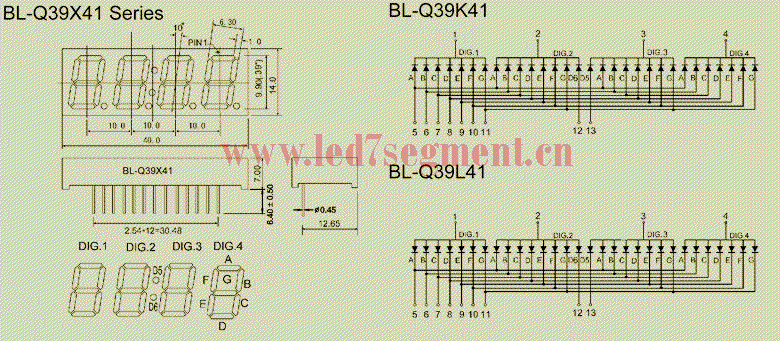

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-Q39K-41H BL-Q39L-41H Red 700 2.25 2.6 10.5
BL-Q39K-41UR BL-Q39L-41UR Ultra Red 660 1.85 2.2 160
BL-Q39K-41S BL-Q39L-41S Hi Red 660 1.85 2.2 105
BL-Q39K-41D BL-Q39L-41D Super Red 660 1.85 2.2 115
BL-Q39K-41E BL-Q39L-41E Orange 635 2.1 2.5 115
BL-Q39K-41UE BL-Q39L-41UE Ultra Orange 630 2.1 2.5 140
BL-Q39K-41UY BL-Q39L-41UY Ultra Yellow 590 2.1 2.5 135
BL-Q39K-41Y BL-Q39L-41Y Yellow 585 2.1 2.5 115
BL-Q39K-41UG BL-Q39L-41UG Ultra Green 574 2.2 2.5 140
BL-Q39K-41G BL-Q39L-41G Green 570 2.2 2.5 120
BL-Q39K-41PG BL-Q39L-41PG Ultra Pure Green 525 3.8 4.5 195
BL-Q39K-41UB BL-Q39L-41UB ultra Blue 470 3.8 4.5 125
BL-Q39K-41B BL-Q39L-41B ultra Blue 470 3.8 4.5 100
BL-Q39K-41W BL-Q39L-41W Ultra White / 2.7 4.2 160
