LED 7 Segment display
| 7 segment led display >> FOUR DIGITS >> 0.56 inch four seven segment led display
Specification
|
| Series | BL-Q56A-42,BL-Q56B-42 |
| Apperance: | 0.56 inch digit height(14.20mm) |
| Dimension: | 50.30*19.00mm |
| Datasheet: |  |
|
|
0.56 inch four seven segment led display
0.56 inch digit height(14.20mm)
widthheight:50.3019.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categori

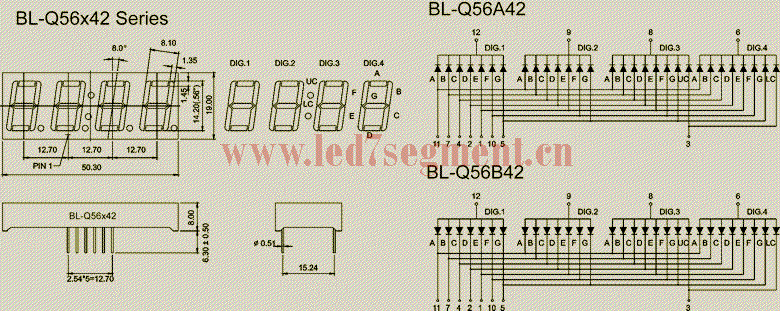

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-Q56A-42H | BL-Q56B-42H | Red | 700 | 2.25 | 2.6 | 11.5 | | BL-Q56A-42D | BL-Q56B-42D | Super Red | 660 | 1.85 | 2.2 | 120 | | BL-Q56A-42UR | BL-Q56B-42UR | Ultra Red | 660 | 1.85 | 2.2 | 165 | | BL-Q56A-42S | BL-Q56B-42S | Hi Red | 660 | 1.85 | 2.2 | 115 | | BL-Q56A-42E | BL-Q56B-42E | Orange | 635 | 2.1 | 2.5 | 120 | | BL-Q56A-42UE | BL-Q56B-42UE | Ultra Orange | 630 | 2.1 | 2.5 | 145 | | BL-Q56A-42UY | BL-Q56B-42UY | Ultra Yellow | 590 | 2.1 | 2.5 | 140 | | BL-Q56A-42Y | BL-Q56B-42Y | Yellow | 585 | 2.1 | 2.5 | 120 | | BL-Q56A-42UG | BL-Q56B-42UG | Ultra Green | 574 | 2.2 | 2.5 | 145 | | BL-Q56A-42G | BL-Q56B-42G | Green | 570 | 2.2 | 2.5 | 120 | | BL-Q56A-42PG | BL-Q56B-42PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 195 | | BL-Q56A-42UB | BL-Q56B-42UB | ultra Blue | 470 | 3.8 | 4.5 | 125 | | BL-Q56A-42B | BL-Q56B-42B | ultra Blue | 470 | 3.8 | 4.5 | 110 | | BL-Q56A-42W | BL-Q56B-42W | Ultra White | / | 2.7 | 4.2 | 150 | |
