LED 7 Segment display
| 7 segment led display >> FOUR DIGITS >> 0.56 inch four seven segment led display
Specification
|
| Series | BL-Q56A-44,BL-Q56B-44 |
| Apperance: | 0.56 inch digit height(14.22mm) |
| Dimension: | 50.50*19.00mm |
| Datasheet: |  |
|
|
0.56 inch four seven segment led display
0.56 inch digit height(14.220mm)
widthheight:50.5019.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available
Categori

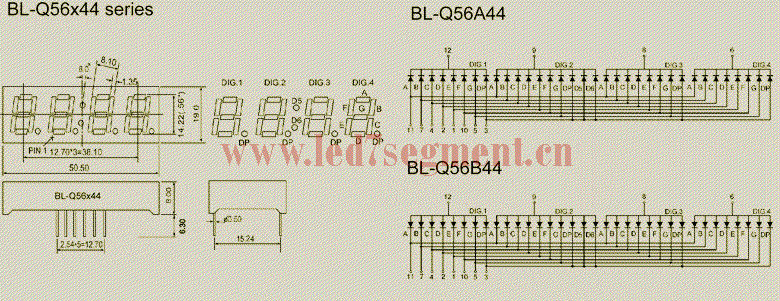

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-Q56A-44H | BL-Q56B-44H | Red | 700 | 2.25 | 2.6 | 11.5 | | BL-Q56A-44UR | BL-Q56B-44UR | Ultra Red | 660 | 1.85 | 2.2 | 165 | | BL-Q56A-44S | BL-Q56B-44S | Hi Red | 660 | 1.85 | 2.2 | 115 | | BL-Q56A-44D | BL-Q56B-44D | Super Red | 660 | 1.85 | 2.2 | 120 | | BL-Q56A-44E | BL-Q56B-44E | Orange | 635 | 2.1 | 2.5 | 120 | | BL-Q56A-44UE | BL-Q56B-44UE | Ultra Orange | 630 | 2.1 | 2.5 | 145 | | BL-Q56A-44UY | BL-Q56B-44UY | Ultra Yellow | 590 | 2.1 | 2.5 | 140 | | BL-Q56A-44Y | BL-Q56B-44Y | Yellow | 585 | 2.1 | 2.5 | 120 | | BL-Q56A-44UG | BL-Q56B-44UG | Ultra Green | 574 | 2.2 | 2.5 | 145 | | BL-Q56A-44G | BL-Q56B-44G | Green | 570 | 2.2 | 2.5 | 120 | | BL-Q56A-44PG | BL-Q56B-44PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 195 | | BL-Q56A-44UB | BL-Q56B-44UB | ultra Blue | 470 | 3.8 | 4.5 | 125 | | BL-Q56A-44B | BL-Q56B-44B | ultra Blue | 470 | 3.8 | 4.5 | 110 | | BL-Q56A-44W | BL-Q56B-44W | Ultra White | / | 2.7 | 4.2 | 150 | |
