LED 7 Segment display

7 segment led display >> FOUR DIGITS >> 0.56 inch four seven segment led display

Specification

SeriesBL-Q56E-43,BL-Q56F-43
Apperance:0.56 inch digit height(14.22mm)
Dimension: 50.00*19.00mm
Datasheet:

0.56 inch four seven segment led display 0.56 inch digit height(14.22mm) widthheight:50.0019.00mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categori

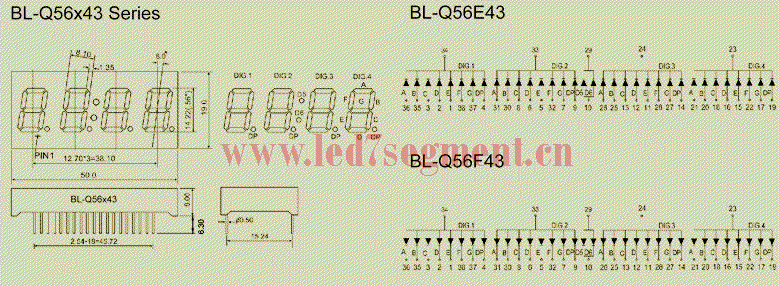

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-Q56E-43H BL-Q56F-43H Red 700 2.25 2.6 11.5
BL-Q56E-43UR BL-Q56F-43UR Ultra Red 660 1.85 2.2 165
BL-Q56E-43S BL-Q56F-43S Hi Red 660 1.85 2.2 115
BL-Q56E-43D BL-Q56F-43D Super Red 660 1.85 2.2 120
BL-Q56E-43E BL-Q56F-43E Orange 635 2.1 2.5 120
BL-Q56E-43UE BL-Q56F-43UE Ultra Orange 630 2.1 2.5 145
BL-Q56E-43UY BL-Q56F-43UY Ultra Yellow 590 2.1 2.5 140
BL-Q56E-43Y BL-Q56F-43Y Yellow 585 2.1 2.5 120
BL-Q56E-43UG BL-Q56F-43UG Ultra Green 574 2.2 2.5 145
BL-Q56E-43G BL-Q56F-43G Green 570 2.2 2.5 120
BL-Q56E-43PG BL-Q56F-43PG Ultra Pure Green 525 3.8 4.5 195
BL-Q56E-43UB BL-Q56F-43UB ultra Blue 470 3.8 4.5 125
BL-Q56E-43B BL-Q56F-43B ultra Blue 470 3.8 4.5 110
BL-Q56E-43W BL-Q56F-43W Ultra White / 2.7 4.2 150
