LED 7 Segment display

7 segment led display >> SINGLE DIGIT >> 1.00 inch single seven segment led display

Specification

SeriesBL-S100A-12,BL-S100B-12
Apperance:1.00 inch digit height(25.40mm)
Dimension: 24.00*34.00mm
Datasheet:

1.00 inch single seven segment led display 1.00 inch digit height(25.40mm) widthheight: 24.0034.00mm Single decimal point Single or Double LED chip per segment Bi-color selected; Common anode or common cathode selected Low Current Operation cellen

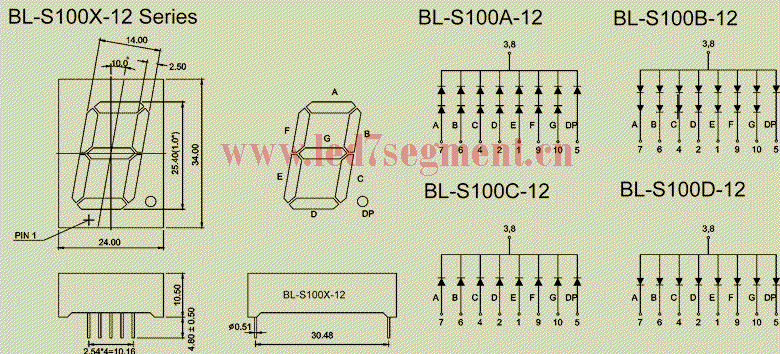

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S100A-12UR BL-S100B-12UR Ultra Red 660 1.85 2.2 130
BL-S100A-12S BL-S100B-12S Hi Red 660 1.85 2.2 80
BL-S100A-12D BL-S100B-12D Super Red 660 1.85 2.2 120
BL-S100A-12E BL-S100B-12E Orange 635 2.1 2.5 92
BL-S100A-12UE BL-S100B-12UE Ultra Orange 630 2.1 2.5 95
BL-S100A-12UY BL-S100B-12UY Ultra Yellow 590 2.1 2.5 95
BL-S100A-12Y BL-S100B-12Y Yellow 585 2.1 2.5 92
BL-S100A-12UG BL-S100B-12UG Ultra Green 574 2.2 2.5 120
BL-S100A-12G BL-S100B-12G Green 570 2.2 2.5 92
BL-S100A-12PG BL-S100B-12PG Ultra Pure Green 525 3.8 4.5 150
BL-S100A-12UB BL-S100B-12UB ultra Blue 470 3.8 4.5 100
BL-S100A-12B BL-S100B-12B ultra Blue 470 3.8 4.5 85
BL-S100A-12W BL-S100B-12W Ultra White / 2.7 4.2 120
