LED 7 Segment display

| 7 segment led display >> SINGLE DIGIT >> 1.00 inch single seven segment led display , bi-color

Specification

SeriesBL-S100A-12xx,BL-S100B-12xx
Apperance:1.00 inch digit height(25.40mm)
Dimension: 24.00*34.00mm
Datasheet:

1.00 inch single seven segment led display 1.00 inch digit height(25.40mm) widthheight: 24.0034.00mm Single decimal point Single or Double LED chip per segment Bi-color selected; Common anode or common cathode selected Low Current Operation cellen

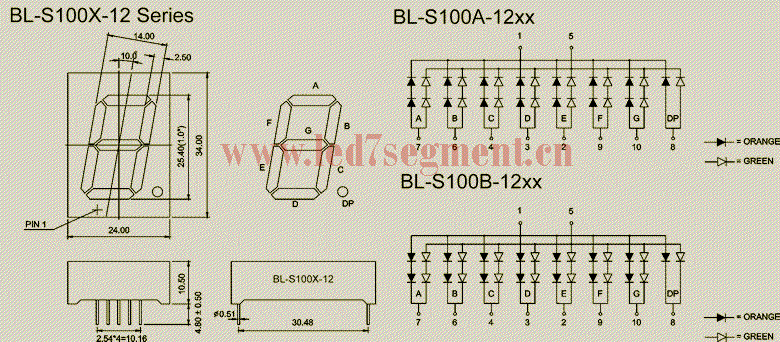

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S100A-12SG BL-S100B-12SG Hi Red 660 1.85 2.2 80
BL-S100A-12SG BL-S100B-12SG Green 570 2.2 2.5 92
BL-S100A-12EG BL-S100B-12EG Orange 635 2.1 2.5 92
BL-S100A-12EG BL-S100B-12EG Green 570 2.2 2.5 92

[Print] [Return]

Specification

PDF DATASHEET

We will provide customer the useful information for marketing and for technical while customer get one password from us. it may download our brochure, our marketing material, our presentation, and other material novelty
