LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 1.00 inch single seven segment led display
Specification
|
| Series | BL-S100C-12,BL-S100D-12 |
| Apperance: | 1.00 inch digit height(25.40mm) |
| Dimension: | 24.00*34.00mm |
| Datasheet: |  |
|
|
1.00 inch single seven segment led display
1.00 inch digit height(25.40mm)
widthheight: 24.0034.00mm
Single decimal point
Single or Double LED chip per segment
Bi-color selected;
Common anode or common cathode selected
Low Current Operation
cellen

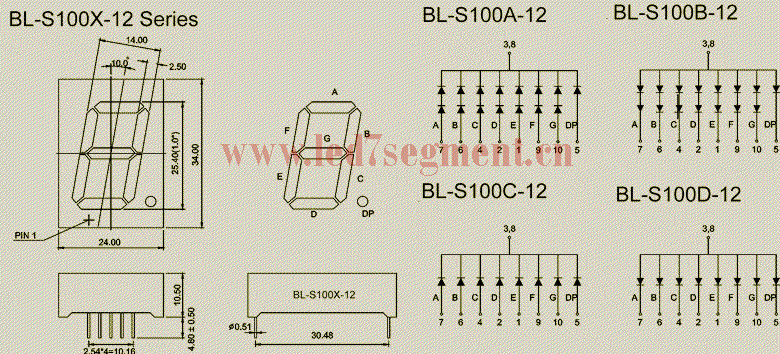

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S100C-12UR | BL-S100D-12UR | Ultra Red | 660 | 1.85 | 2.2 | 130 | | BL-S100C-12S | BL-S100D-12S | Hi Red | 660 | 1.85 | 2.2 | 80 | | BL-S100C-12D | BL-S100D-12D | Super Red | 660 | 1.85 | 2.2 | 120 | | BL-S100C-12E | BL-S100D-12E | Orange | 635 | 2.1 | 2.5 | 92 | | BL-S100C-12UE | BL-S100D-12UE | Ultra Orange | 630 | 2.1 | 2.5 | 95 | | BL-S100C-12UY | BL-S100D-12UY | Ultra Yellow | 590 | 2.1 | 2.5 | 95 | | BL-S100C-12Y | BL-S100D-12Y | Yellow | 585 | 2.1 | 2.5 | 92 | | BL-S100C-12UG | BL-S100D-12UG | Ultra Green | 574 | 2.2 | 2.5 | 120 | | BL-S100C-12G | BL-S100D-12G | Green | 570 | 2.2 | 2.5 | 92 | | BL-S100C-12PG | BL-S100D-12PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 150 | | BL-S100C-12UB | BL-S100D-12UB | ultra Blue | 470 | 3.8 | 4.5 | 100 | | BL-S100C-12B | BL-S100D-12B | ultra Blue | 470 | 3.8 | 4.5 | 85 | | BL-S100C-12W | BL-S100D-12W | Ultra White | / | 2.7 | 4.2 | 80 | |
