LED 7 Segment display
| 7 segment led display >> alpha-numeric >> 1.50 inch single alpha-numeric led display
Specification
|
| Series | BL-S150A-12,BL-S150B-12 |
| Apperance: | 1.50 inch digit height(38.00mm) |
| Dimension: | 31.00*44.00mm |
| Datasheet: |  |
|
|
1.50 inch single alpha-numeric led display
1.50 inch digit height(38.00mm)
widthheight: 31.0044.00mm
Single decimal point
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounti

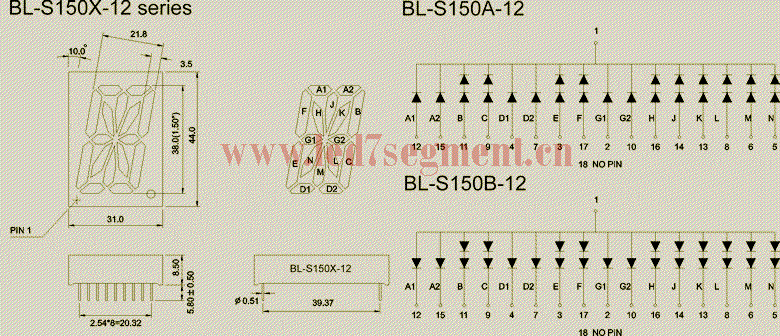

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S150A-12H | BL-S150B-12H | Red | 700 | 2.25 | 2.6 | | | BL-S150A-12UR | BL-S150B-12UR | Ultra Red | 660 | 1.85 | 2.2 | 85 | | BL-S150A-12S | BL-S150B-12S | Hi Red | 660 | 1.85 | 2.2 | 50 | | BL-S150A-12D | BL-S150B-12D | Super Red | 660 | 1.85 | 2.2 | 75 | | BL-S150A-12E | BL-S150B-12E | Orange | 635 | 2.1 | 2.5 | 40 | | BL-S150A-12UE | BL-S150B-12UE | Ultra Orange | 630 | 2.1 | 2.5 | 65 | | BL-S150A-12UY | BL-S150B-12UY | Ultra Yellow | 590 | 2.1 | 2.5 | 55 | | BL-S150A-12Y | BL-S150B-12Y | Yellow | 585 | 2.1 | 2.5 | 45 | | BL-S150A-12UG | BL-S150B-12UG | Ultra Green | 574 | 2.2 | 2.5 | 54 | | BL-S150A-12G | BL-S150B-12G | Green | 570 | 2.2 | 2.5 | 45 | | BL-S150A-12PG | BL-S150B-12PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 70 | | BL-S150A-12UB | BL-S150B-12UB | ultra Blue | 470 | 3.8 | 4.5 | 75 | | BL-S150A-12B | BL-S150B-12B | ultra Blue | 470 | 3.8 | 4.5 | 70 | | BL-S150A-12W | BL-S150B-12W | Ultra White | / | 2.7 | 4.2 | 120 | |
