LED 7 Segment display
| 7 segment led display >> alpha-numeric >> 1.50 inch single alpha-numeric led display
Specification
|
| Series | BL-S150A-13,BL-S150B-13 |
| Apperance: | 1.50 inch digit height(38.10mm) |
| Dimension: | 30.6*44.0mm |
| Datasheet: |  |
|
|
1.50 inch single seven segment led display
1.50 inch digit height(38.10mm)
widthheight: 30.6*44.0mm
Bi-color selected;
Single decimal point
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance
High Light Outpu

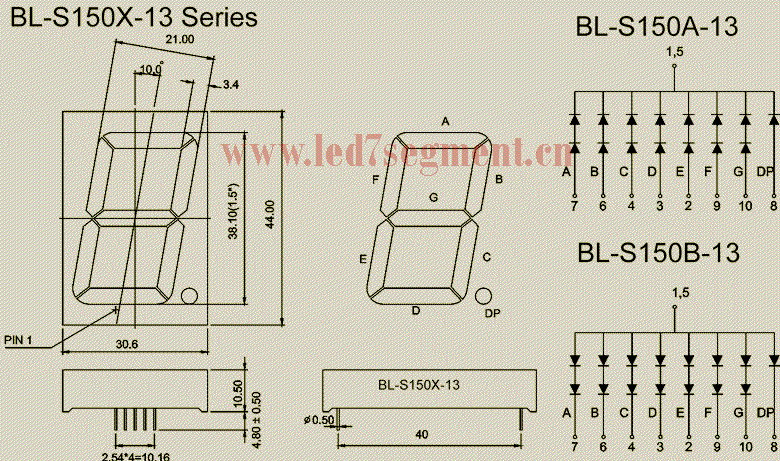

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S150A-13H | BL-S150B-13H | Red | 700 | 2.25 | 2.6 | | | BL-S150A-13UR | BL-S150B-13UR | Ultra Red | 660 | 1.85 | 2.2 | 130 | | BL-S150A-13S | BL-S150B-13S | Hi Red | 660 | 1.85 | 2.2 | 80 | | BL-S150A-13D | BL-S150B-13D | Super Red | 660 | 1.85 | 2.2 | 120 | | BL-S150A-13E | BL-S150B-13E | Orange | 635 | 2.1 | 2.5 | 92 | | BL-S150A-13UE | BL-S150B-13UE | Ultra Orange | 630 | 2.1 | 2.5 | 95 | | BL-S150A-13UY | BL-S150B-13UY | Ultra Yellow | 590 | 2.1 | 2.5 | 95 | | BL-S150A-13Y | BL-S150B-13Y | Yellow | 585 | 2.1 | 2.5 | 92 | | BL-S150A-13UG | BL-S150B-13UG | Ultra Green | 574 | 2.2 | 2.5 | 120 | | BL-S150A-13G | BL-S150B-13G | Green | 570 | 2.2 | 2.5 | 92 | | BL-S150A-13PG | BL-S150B-13PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 150 | | BL-S150A-13UB | BL-S150B-13UB | ultra Blue | 470 | 3.8 | 4.5 | 100 | | BL-S150A-13B | BL-S150B-13B | ultra Blue | 470 | 3.8 | 4.5 | 85 | | BL-S150A-13W | BL-S150B-13W | Ultra White | / | 2.7 | 4.2 | 120 | |
