LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 1.80 inch single seven segment led display
Specification
|
| Series | BL-S180A-11,BL-S180B-11 |
| Apperance: | 1.80 inch digit height(45.00mm) |
| Dimension: | 38.00*56.00mm |
| Datasheet: |  |
|
|
1.80 inch single seven segment led display
1.80 inch digit height(45.00mm)
widthheight: 38.0056.00mm
Bi-color selected;
Single decimal point
Double or three LED chips per segment(single color)
Four or Six LED chips per segment(bi-color)
Common anode o

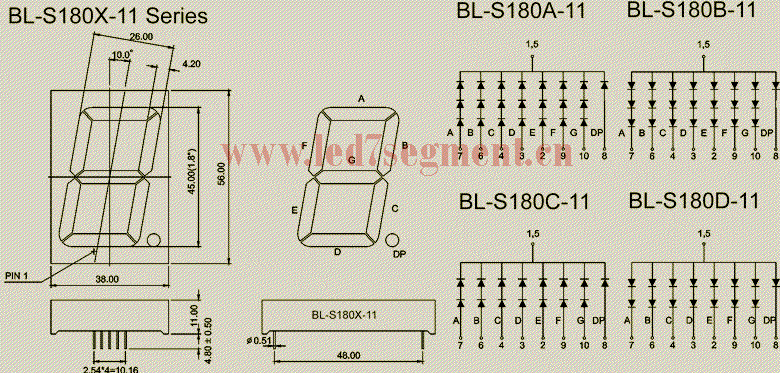

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S180A-11H | BL-S180B-11H | Red | 700 | 2.25 | 2.6 | | | BL-S180A-11UR | BL-S180B-11UR | Ultra Red | 660 | 1.85 | 2.2 | 180 | | BL-S180A-11S | BL-S180B-11S | Hi Red | 660 | 1.85 | 2.2 | 110 | | BL-S180A-11D | BL-S180B-11D | Super Red | 660 | 1.85 | 2.2 | 165 | | BL-S180A-11E | BL-S180B-11E | Orange | 635 | 2.1 | 2.5 | 120 | | BL-S180A-11UE | BL-S180B-11UE | Ultra Orange | 630 | 2.1 | 2.5 | 125 | | BL-S180A-11UY | BL-S180B-11UY | Ultra Yellow | 590 | 2.1 | 2.5 | 125 | | BL-S180A-11Y | BL-S180B-11Y | Yellow | 585 | 2.1 | 2.5 | 120 | | BL-S180A-11UG | BL-S180B-11UG | Ultra Green | 574 | 2.2 | 2.5 | 165 | | BL-S180A-11G | BL-S180B-11G | Green | 570 | 2.2 | 2.5 | 120 | | BL-S180A-11PG | BL-S180B-11PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 210 | | BL-S180A-11UB | BL-S180B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 120 | | BL-S180A-11B | BL-S180B-11B | ultra Blue | 470 | 3.8 | 4.5 | 97 | | BL-S180A-11W | BL-S180B-11W | Ultra White | / | 2.7 | 4.2 | 165 | |
