LED 7 Segment display

| 7 segment led display >> SINGLE DIGIT >> 1.80 inch single seven segment led display , bi-color

Specification

SeriesBL-S180E-11XX,BL-S180F-11XX
Apperance:1.80 inch digit height(45.00mm)
Dimension: 38.00*56.00mm
Datasheet:

1.80 inch single seven segment led display 1.80 inch digit height(45.00mm) widthheight: 38.0056.00mm Bi-color selected; Single decimal point Double or three LED chips per segment(single color) Four or Six LED chips per segment(bi-color) Common anode o

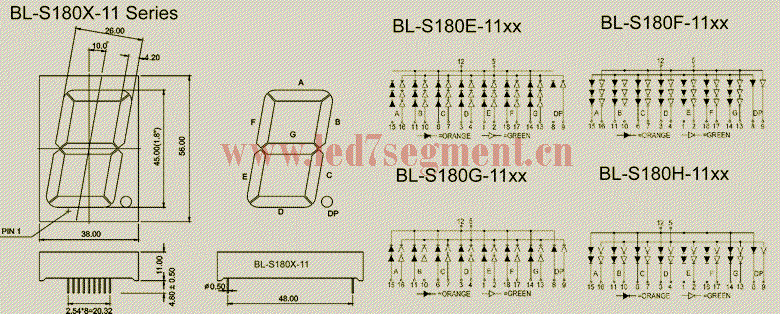

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S180E-11SG BL-S180F-11SG Green 570 2.2 2.5 120
BL-S180E-11SG BL-S180F-11SG Hi Red 660 1.85 2.2 110
BL-S180E-11EG BL-S180F-11EG Green 570 2.2 2.5 120
BL-S180E-11EG BL-S180F-11EG Orange 635 2.1 2.5 120
