LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 2.30 inch single seven segment led display
Specification
|
| Series | BL-S230A-11,BL-S230B-11 |
| Apperance: | 2.30 inch digit height(56.80mm) |
| Dimension: | 47.80*69.70mm |
| Datasheet: |  |
|
|
2.30 inch single seven segment led display
2.30 inch digit height(56.80mm)
widthheight: 47.8069.70mm
Bi-color selected;
Single decimal point
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance
High Light Outpu

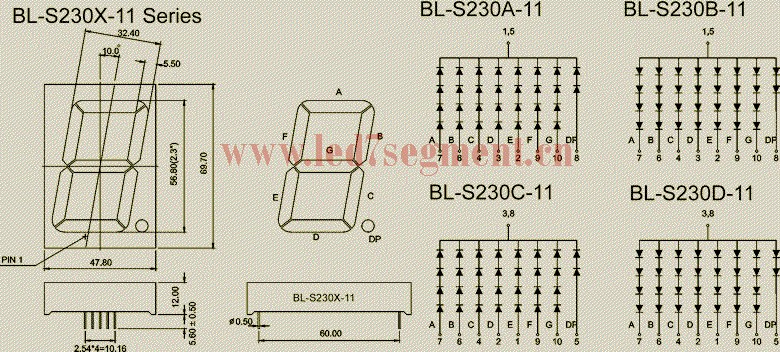

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S230A-11H | BL-S230B-11H | Red | 700 | 2.25 | 2.6 | | | BL-S230A-11UR | BL-S230B-11UR | Ultra Red | 660 | 1.85 | 2.2 | 250 | | BL-S230A-11S | BL-S230B-11S | Hi Red | 660 | 1.85 | 2.2 | 150 | | BL-S230A-11E | BL-S230B-11E | Orange | 635 | 2.1 | 2.5 | 165 | | BL-S230A-11UE | BL-S230B-11UE | Ultra Orange | 630 | 2.1 | 2.5 | 170 | | BL-S230A-11UY | BL-S230B-11UY | Ultra Yellow | 590 | 2.1 | 2.5 | 170 | | BL-S230A-11Y | BL-S230B-11Y | Yellow | 585 | 2.1 | 2.5 | 165 | | BL-S230A-11UG | BL-S230B-11UG | Ultra Green | 574 | 2.2 | 2.5 | 220 | | BL-S230A-11G | BL-S230B-11G | Green | 570 | 2.2 | 2.5 | 165 | | BL-S230A-11PG | BL-S230B-11PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 245 | | BL-S230A-11UB | BL-S230B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 150 | | BL-S230A-11B | BL-S230B-11B | ultra Blue | 470 | 3.8 | 4.5 | 130 | | BL-S230A-11W | BL-S230B-11W | Ultra White | / | 2.7 | 4.2 | 180 | |
