7 segment led display >> SINGLE DIGIT >> 2.30 inch single seven segment led display , bi-color

Specification

SeriesBL-S230A-11xx,BL-S230B-11xx
Apperance:2.30 inch digit height(56.80mm)
Dimension: 47.80*69.70mm
Datasheet:

2.30 inch single seven segment led display 2.30 inch digit height(56.80mm) widthheight: 47.8069.70mm Bi-color selected; Single decimal point Common anode or common cathode selected Low Current Operation excellent Character Appearance High Light Outpu

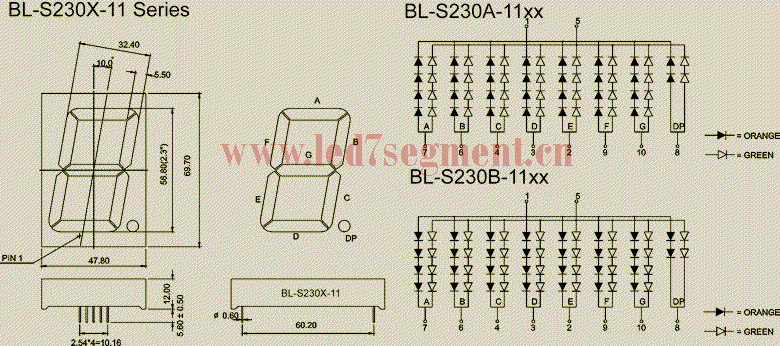

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S230A-11SG BL-S230B-11SG Hi Red 660 1.85 2.2 150
BL-S230A-11SG BL-S230B-11SG Green 570 2.2 2.5 165
BL-S230A-11EG BL-S230B-11EG Orange 635 2.1 2.5 165
BL-S230A-11EG BL-S230B-11EG Green 570 2.2 2.5 165
