LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 3.00 inch single seven segment led display
Specification
|
| Series | BL-S300A-11,BL-S300B-11 |
| Apperance: | 3.00 inch digit height(76.00mm) |
| Dimension: | 70.00*110.00mm |
| Datasheet: |  |
|
|
3.00 inch single seven segment led display
3.00 inch digit height(76.00mm)
widthheight: 70.00110.00mm
Bi-color selected;
Single decimal point and a comma
Six LED chips per segment (single color)
Twelve LED chips per segment (bi-color)
Common anode or

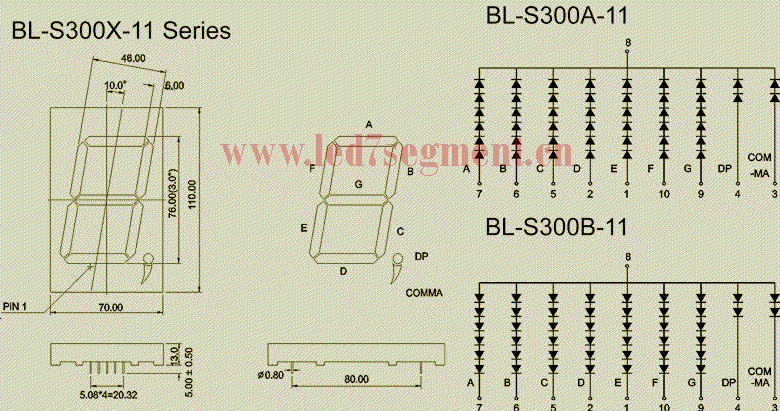

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S300A-11H | BL-S300B-11H | Red | 700 | 2.25 | 2.6 | | | BL-S300A-11UR | BL-S300B-11UR | Ultra Red | 660 | 1.85 | 2.2 | 320 | | BL-S300A-11S | BL-S300B-11S | Hi Red | 660 | 1.85 | 2.2 | 210 | | BL-S300A-11D | BL-S300B-11D | Super Red | 660 | 1.85 | 2.2 | 300 | | BL-S300A-11E | BL-S300B-11E | Orange | 635 | 2.1 | 2.5 | 210 | | BL-S300A-11UE | BL-S300B-11UE | Ultra Orange | 630 | 2.1 | 2.5 | 215 | | BL-S300A-11UY | BL-S300B-11UY | Ultra Yellow | 590 | 2.1 | 2.5 | 215 | | BL-S300A-11Y | BL-S300B-11Y | Yellow | 585 | 2.1 | 2.5 | 210 | | BL-S300A-11UG | BL-S300B-11UG | Ultra Green | 574 | 2.2 | 2.5 | 300 | | BL-S300A-11G | BL-S300B-11G | Green | 570 | 2.2 | 2.5 | 210 | | BL-S300A-11PG | BL-S300B-11PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 350 | | BL-S300A-11UB | BL-S300B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 250 | | BL-S300A-11B | BL-S300B-11B | ultra Blue | 470 | 3.8 | 4.5 | 215 | | BL-S300A-11W | BL-S300B-11W | Ultra White | / | 2.7 | 4.2 | 270 | |
