LED 7 Segment display

7 segment led display >> SINGLE DIGIT >> 0.30 inch single seven segment led display

Specification

SeriesBL-S30A-15,BL-S30B-15
Apperance:0.30 inch digit height(7.40mm)
Dimension: 10.06*19.00mm
Datasheet:

0.30 inch single alpha-numeric led display 0.30 inch digit height(7.40mm) widthheight: 10.06*19.00mm Single decimal point Common anode or common cathode selected Low Current Operation excellent Character Appearance

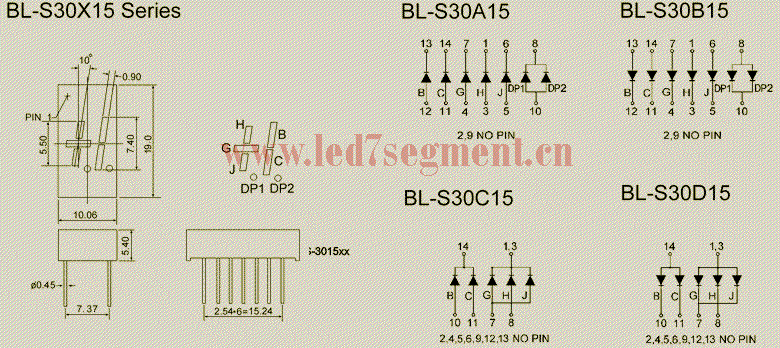

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S30A-15H BL-S30B-15H Red 700 2.25 2.6 .5
BL-S30A-15UR BL-S30B-15UR Ultra Red 660 1.85 2.2 14
BL-S30A-15S BL-S30B-15S Hi Red 660 1.85 2.2 6
BL-S30A-15D BL-S30B-15D Super Red 660 1.85 2.2 12
BL-S30A-15E BL-S30B-15E Orange 635 2.1 2.5 10
BL-S30A-15UE BL-S30B-15UE Ultra Orange 630 2.1 2.5 12
BL-S30A-15UY BL-S30B-15UY Ultra Yellow 590 2.1 2.5 12
BL-S30A-15Y BL-S30B-15Y Yellow 585 2.1 2.5 10
BL-S30A-15UG BL-S30B-15UG Ultra Green 574 2.2 2.5 18
BL-S30A-15G BL-S30B-15G Green 570 2.2 2.5 10
BL-S30A-15PG BL-S30B-15PG Ultra Pure Green 525 3.8 4.5 22
BL-S30A-15UB BL-S30B-15UB ultra Blue 470 3.8 4.5 31.5
BL-S30A-15B BL-S30B-15B ultra Blue 470 3.8 4.5 25
BL-S30A-15W BL-S30B-15W Ultra White / 2.7 4.2 30
