LED 7 Segment display

| 7 segment led display >> SINGLE DIGIT >> 0.30 inch single seven segment led display

Specification

SeriesBL-S30C-11,BL-S30D-11
Apperance:0.30 inch digit height(7.80mm)
Dimension: 10.06*19.00mm
Datasheet:

0.30 inch single seven segment led display 0.30 inch digit height(7.80mm) widthheight: 10.0619.00mm Single decimal point or double decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Charac

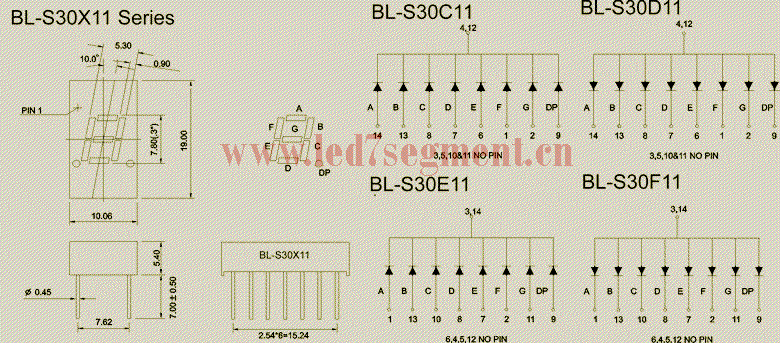

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S30C-11S BL-S30D-11S Red 700 2.25 2.6 .5
BL-S30C-11H BL-S30D-11H Red 700 2.25 2.6 .5
BL-S30C-11UR BL-S30D-11UR Ultra Red 660 1.85 2.2 14
BL-S30C-11D BL-S30D-11D Super Red 660 1.85 2.2 12
BL-S30C-11E BL-S30D-11E Orange 635 2.1 2.5 10
BL-S30C-11UE BL-S30D-11UE Ultra Orange 630 2.1 2.5 12
BL-S30C-11UY BL-S30D-11UY Ultra Yellow 590 2.1 2.5 12
BL-S30C-11Y BL-S30D-11Y Yellow 585 2.1 2.5 10
BL-S30C-11UG BL-S30D-11UG Ultra Green 574 2.2 2.5 18
BL-S30C-11G BL-S30D-11G Green 570 2.2 2.5 10
BL-S30C-11PG BL-S30D-11PG Ultra Pure Green 525 3.8 4.5 22
BL-S30C-11UB BL-S30D-11UB ultra Blue 470 3.8 4.5 31.5
BL-S30C-11B BL-S30D-11B ultra Blue 470 3.8 4.5 25
