LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 0.36 inch single seven segment led display
Specification
|
| Series | BL-S36A-11,BL-S36B-11 |
| Apperance: | 0.36 inch digit height(9.10mm) |
| Dimension: | 7.50*14.00mm |
| Datasheet: |  |
|
|
0.36 inch single seven segment led display
0.36 inch digit height(9.10mm)
widthheight: 7.5014.00mm
Single decimal point
Single LED chip per segment
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance
High Lig

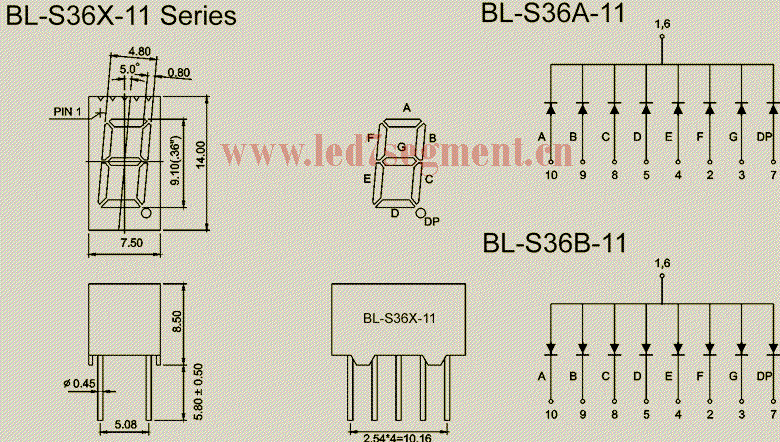

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S36A-11H | BL-S36B-11H | Red | 700 | 2.25 | 2.6 | .8 | | BL-S36A-11UR | BL-S36B-11UR | Ultra Red | 660 | 1.85 | 2.2 | 17 | | BL-S36A-11S | BL-S36B-11S | Hi Red | 660 | 1.85 | 2.2 | 8 | | BL-S36A-11D | BL-S36B-11D | Super Red | 660 | 1.85 | 2.2 | 15 | | BL-S36A-11E | BL-S36B-11E | Orange | 635 | 2.1 | 2.5 | 10 | | BL-S36A-11UE | BL-S36B-11UE | Ultra Orange | 630 | 2.1 | 2.5 | 13 | | BL-S36A-11UY | BL-S36B-11UY | Ultra Yellow | 590 | 2.1 | 2.5 | 13 | | BL-S36A-11Y | BL-S36B-11Y | Yellow | 585 | 2.1 | 2.5 | 10 | | BL-S36A-11UG | BL-S36B-11UG | Ultra Green | 574 | 2.2 | 2.5 | 15 | | BL-S36A-11G | BL-S36B-11G | Green | 570 | 2.2 | 2.5 | 10 | | BL-S36A-11PG | BL-S36B-11PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 20 | | BL-S36A-11UB | BL-S36B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 32 | | BL-S36A-11B | BL-S36B-11B | ultra Blue | 470 | 3.8 | 4.5 | 26 | | BL-S36A-11W | BL-S36B-11W | Ultra White | / | 2.7 | 4.2 | 32 | |
