LED 7 Segment display

7 segment led display >> SINGLE DIGIT >> 4.00 inch single seven segment led display , bi-color

Specification

SeriesBL-S400A-11xx,BL-S400B-11xx
Apperance:4.00 inch digit height(101.60mm)
Dimension: 90.00*122.00mm
Datasheet:

4.00 inch single seven segment led display 4.00 inch digit height(101.60mm) widthheight: 90.00122.00mm Bi-color selected; Single decimal point and a comma 5 or 8 LED chips per segment (single color) 16 LED chips per segment (bi-color) Common anode or

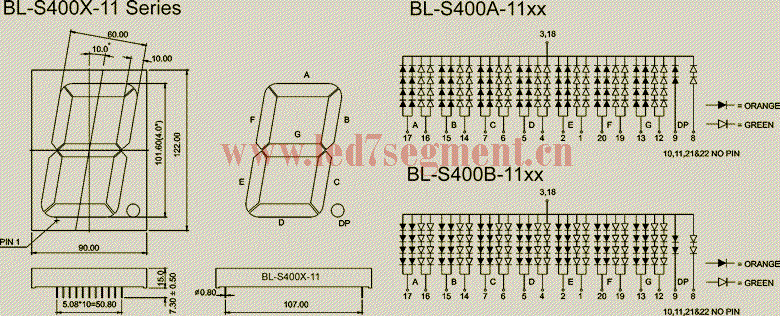

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S400A-11SG BL-S400B-11SG Green 570 2.2 2.5 80
BL-S400A-11SG BL-S400B-11SG Hi Red 660 1.85 2.2 75
BL-S400A-11EG BL-S400B-11EG Green 570 2.2 2.5 80
BL-S400A-11EG BL-S400B-11EG Orange 635 2.1 2.5 75
