LED 7 Segment display

7 segment led display >> SINGLE DIGIT >> 4.00 inch single seven segment led display

Specification

SeriesBL-S400E-11,BL-S400F-11
Apperance:4.00 inch digit height(101.60mm)
Dimension: 90.00*122.00mm
Datasheet:

4.00 inch single seven segment led display 4.00 inch digit height(101.60mm) widthheight: 90.00122.00mm Bi-color selected; Single decimal point and a comma 5 or 8 LED chips per segment (single color) 16 LED chips per segment (bi-color) Common anode or

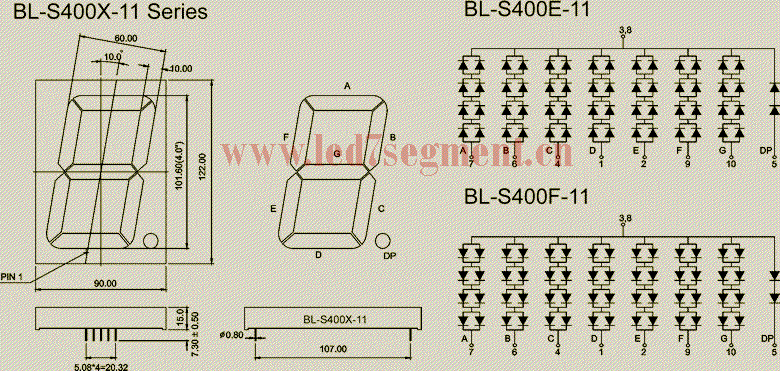

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S400E-11UR BL-S400F-11UR Ultra Red 660 1.85 2.2 320
BL-S400E-11S BL-S400F-11S Hi Red 660 1.85 2.2 210
BL-S400E-11D BL-S400F-11D Super Red 660 1.85 2.2 300
BL-S400E-11E BL-S400F-11E Orange 635 2.1 2.5 210
BL-S400E-11UE BL-S400F-11UE Ultra Orange 630 2.1 2.5 215
BL-S400E-11UY BL-S400F-11UY Ultra Yellow 590 2.1 2.5 215
BL-S400E-11Y BL-S400F-11Y Yellow 585 2.1 2.5 210
BL-S400E-11UG BL-S400F-11UG Ultra Green 574 2.2 2.5 300
BL-S400E-11G BL-S400F-11G Green 570 2.2 2.5 210
BL-S400E-11PG BL-S400F-11PG Ultra Pure Green 525 3.8 4.5 350
BL-S400E-11UB BL-S400F-11UB ultra Blue 470 3.8 4.5 250
BL-S400E-11B BL-S400F-11B ultra Blue 470 3.8 4.5 215
BL-S400E-11W BL-S400F-11W Ultra White / 2.7 4.2 280
