LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 4.00 inch single seven segment led display
Specification
|
| Series | BL-S400G-11,BL-S400H-11 |
| Apperance: | 4.00 inch digit height(101.60mm) |
| Dimension: | 90.00*122.00mm |
| Datasheet: |  |
|
|
4.00 inch single seven segment led display
4.00 inch digit height(101.60mm)
widthheight: 90.00122.00mm
Bi-color selected;
Single decimal point and a comma
5 or 8 LED chips per segment (single color)
16 LED chips per segment (bi-color)
Common anode or

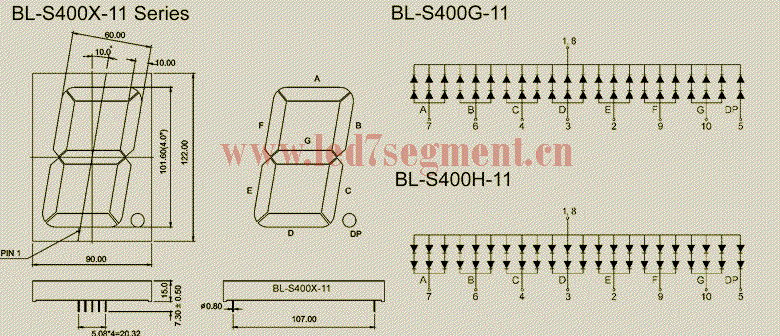

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S400G-11UR | BL-S400H-11UR | Ultra Red | 660 | 1.85 | 2.2 | 150 | | BL-S400G-11S | BL-S400H-11S | Hi Red | 660 | 1.85 | 2.2 | 75 | | BL-S400G-11D | BL-S400H-11D | Super Red | 660 | 1.85 | 2.2 | 132 | | BL-S400G-11E | BL-S400H-11E | Orange | 635 | 2.1 | 2.5 | 75 | | BL-S400G-11UE | BL-S400H-11UE | Ultra Orange | 630 | 2.1 | 2.5 | 80 | | BL-S400G-11UY | BL-S400H-11UY | Ultra Yellow | 590 | 2.1 | 2.5 | 80 | | BL-S400G-11Y | BL-S400H-11Y | Yellow | 585 | 2.1 | 2.5 | 55 | | BL-S400G-11UG | BL-S400H-11UG | Ultra Green | 574 | 2.2 | 2.5 | 132 | | BL-S400G-11G | BL-S400H-11G | Green | 570 | 2.2 | 2.5 | 80 | | BL-S400G-11PG | BL-S400H-11PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 150 | | BL-S400G-11UB | BL-S400H-11UB | ultra Blue | 470 | 3.8 | 4.5 | 100 | | BL-S400G-11B | BL-S400H-11B | ultra Blue | 470 | 3.8 | 4.5 | 82 | | BL-S400G-11W | BL-S400H-11W | Ultra White | / | 2.7 | 4.2 | 210 | |
