LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 5.00 inch single seven segment led display
Specification
|
| Series | BL-S500A-11,BL-S500B-11 |
| Apperance: | 5.00 inch digit height(126.60mm) |
| Dimension: | 108.00*180.00mm |
| Datasheet: |  |
|
|
5.00 inch single seven segment led display
5.00 inch digit height(126.60mm)
widthheight: 108.00180.00mm
Single decimal point and a comma
20 LED chips per segment (single color)
Common anode or common cathode selected
Low Current Operation
excellent Ch

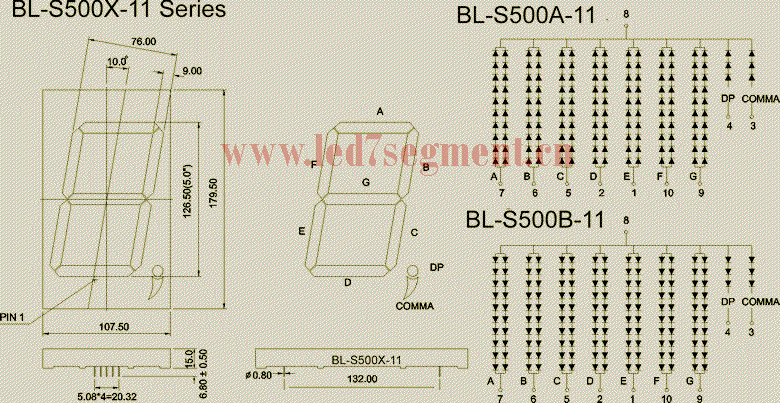

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S500A-11H | BL-S500B-11H | Red | 700 | 2.25 | 2.6 | | | BL-S500A-11UR | BL-S500B-11UR | Ultra Red | 660 | 1.85 | 2.2 | 195 | | BL-S500A-11S | BL-S500B-11S | Hi Red | 660 | 1.85 | 2.2 | 140 | | BL-S500A-11D | BL-S500B-11D | Super Red | 660 | 1.85 | 2.2 | 180 | | BL-S500A-11E | BL-S500B-11E | Orange | 635 | 2.1 | 2.5 | 145 | | BL-S500A-11UE | BL-S500B-11UE | Ultra Orange | 630 | 2.1 | 2.5 | 150 | | BL-S500A-11UY | BL-S500B-11UY | Ultra Yellow | 590 | 2.1 | 2.5 | 150 | | BL-S500A-11Y | BL-S500B-11Y | Yellow | 585 | 2.1 | 2.5 | 110 | | BL-S500A-11UG | BL-S500B-11UG | Ultra Green | 574 | 2.2 | 2.5 | 180 | | BL-S500A-11G | BL-S500B-11G | Green | 570 | 2.2 | 2.5 | 165 | | BL-S500A-11PG | BL-S500B-11PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 200 | | BL-S500A-11UB | BL-S500B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 170 | | BL-S500A-11B | BL-S500B-11B | ultra Blue | 470 | 3.8 | 4.5 | 155 | | BL-S500A-11W | BL-S500B-11W | Ultra White | / | 2.7 | 4.2 | 190 | |
