LED 7 Segment display

7 segment led display >> SINGLE DIGIT >> 0.52 inch single seven segment led display

Specification

SeriesBL-S50A-14,BL-S50B-14
Apperance:0.52 inch digit height(13.20mm)
Dimension: 16.00*25.00mm
Datasheet:

0.50 inch single seven segment led display 0.50 inch digit height(12.70mm) widthheight: 16.0025.00mm Single decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Character Appearance

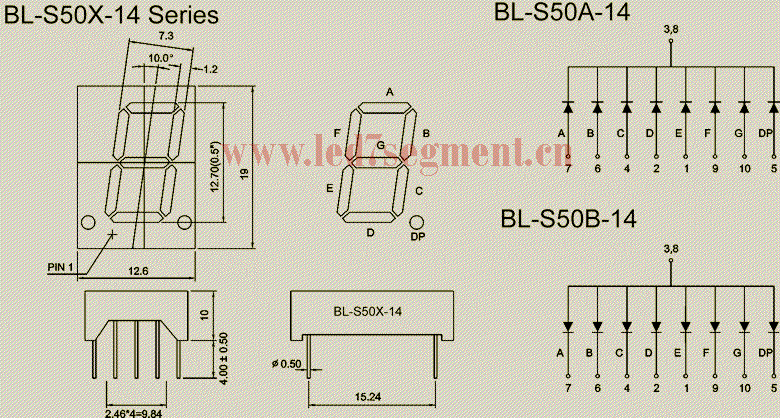

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S50A-14H BL-S50B-14H Red 700 2.25 2.6 2
BL-S50A-14UR BL-S50B-14UR Ultra Red 660 1.85 2.2 38
BL-S50A-14S BL-S50B-14S Hi Red 660 1.85 2.2 20
BL-S50A-14D BL-S50B-14D Super Red 660 1.85 2.2 30
BL-S50A-14E BL-S50B-14E Orange 635 2.1 2.5 25
BL-S50A-14UE BL-S50B-14UE Ultra Orange 630 2.1 2.5 27
BL-S50A-14UY BL-S50B-14UY Ultra Yellow 590 2.1 2.5 27
BL-S50A-14Y BL-S50B-14Y Yellow 585 2.1 2.5 25
BL-S50A-14UG BL-S50B-14UG Ultra Green 574 2.2 2.5 30
BL-S50A-14G BL-S50B-14G Green 570 2.2 2.5 25
BL-S50A-14PG BL-S50B-14PG Ultra Pure Green 525 3.8 4.5 40
BL-S50A-14UB BL-S50B-14UB ultra Blue 470 3.8 4.5 70
BL-S50A-14B BL-S50B-14B ultra Blue 470 3.8 4.5 50
BL-S50A-14W BL-S50B-14W Ultra White / 2.7 4.2 50
