LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 0.52 inch single seven segment led display
Specification
|
| Series | BL-S50A-16,BL-S50B-16 |
| Apperance: | 0.50 inch digit height(12.70mm) |
| Dimension: | 12.7*19mm |
| Datasheet: |  |
|
|
0.50 inch single alpha-numeric led display
0.50 inch digit height(12.70mm)
widthheight: 12.7*19mm
Single decimal point
Single LED chip per segment
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance

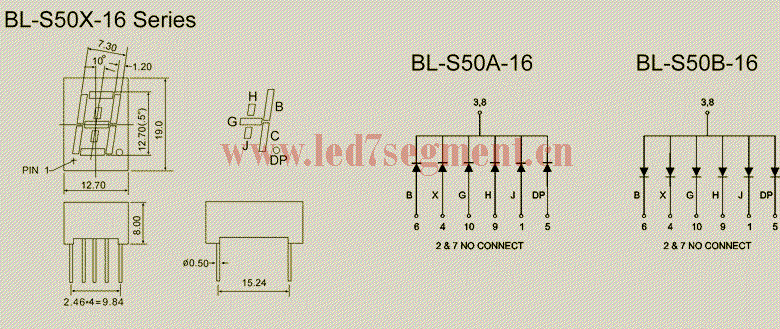

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S50A-16H | BL-S50B-16H | Red | 700 | 2.25 | 2.6 | 2 | | BL-S50A-16UR | BL-S50B-16UR | Ultra Red | 660 | 1.85 | 2.2 | 38 | | BL-S50A-16S | BL-S50B-16S | Hi Red | 660 | 1.85 | 2.2 | 20 | | BL-S50A-16D | BL-S50B-16D | Super Red | 660 | 1.85 | 2.2 | 30 | | BL-S50A-16E | BL-S50B-16E | Orange | 635 | 2.1 | 2.5 | 25 | | BL-S50A-16UE | BL-S50B-16UE | Ultra Orange | 630 | 2.1 | 2.5 | 27 | | BL-S50A-16UY | BL-S50B-16UY | Ultra Yellow | 590 | 2.1 | 2.5 | 27 | | BL-S50A-16Y | BL-S50B-16Y | Yellow | 585 | 2.1 | 2.5 | 25 | | BL-S50A-16UG | BL-S50B-16UG | Ultra Green | 574 | 2.2 | 2.5 | 30 | | BL-S50A-16G | BL-S50B-16G | Green | 570 | 2.2 | 2.5 | 25 | | BL-S50A-16PG | BL-S50B-16PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 40 | | BL-S50A-16UB | BL-S50B-16UB | ultra Blue | 470 | 3.8 | 4.5 | 70 | | BL-S50A-16B | BL-S50B-16B | ultra Blue | 470 | 3.8 | 4.5 | 50 | | BL-S50A-16W | BL-S50B-16W | Ultra White | / | 2.7 | 4.2 | 50 | |
