LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 0.52 inch single seven segment led display
Specification
|
| Series | BL-S50A-17,BL-S50B-17 |
| Apperance: | 0.50 inch digit height(12.70mm) |
| Dimension: | 12.7*19mm |
| Datasheet: |  |
|
|
0.50 inch single alpha-numeric led display
0.50 inch digit height(12.70mm)
widthheight: 12.7*19mm
Single decimal point
Single LED chip per segment
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance

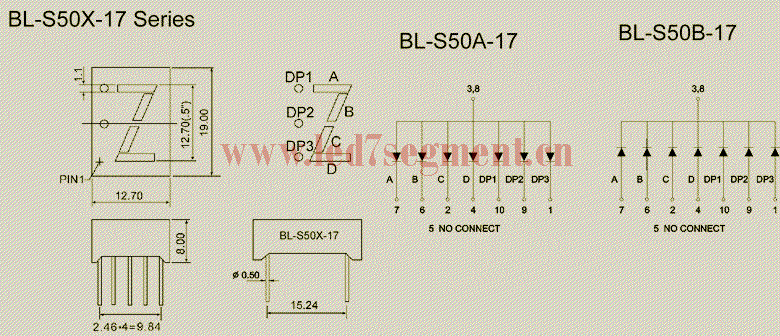

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S50A-17H | BL-S50B-17H | Red | 700 | 2.25 | 2.6 | 1.5 | | BL-S50A-17UR | BL-S50B-17UR | Ultra Red | 660 | 1.85 | 2.2 | 30 | | BL-S50A-17S | BL-S50B-17S | Hi Red | 660 | 1.85 | 2.2 | 15 | | BL-S50A-17D | BL-S50B-17D | Super Red | 660 | 1.85 | 2.2 | 23 | | BL-S50A-17E | BL-S50B-17E | Orange | 635 | 2.1 | 2.5 | 22 | | BL-S50A-17UE | BL-S50B-17UE | Ultra Orange | 630 | 2.1 | 2.5 | 25 | | BL-S50A-17UY | BL-S50B-17UY | Ultra Yellow | 590 | 2.1 | 2.5 | 25 | | BL-S50A-17Y | BL-S50B-17Y | Yellow | 585 | 2.1 | 2.5 | 22 | | BL-S50A-17UG | BL-S50B-17UG | Ultra Green | 574 | 2.2 | 2.5 | 25 | | BL-S50A-17G | BL-S50B-17G | Green | 570 | 2.2 | 2.5 | 22 | | BL-S50A-17PG | BL-S50B-17PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 30 | | BL-S50A-17UB | BL-S50B-17UB | ultra Blue | 470 | 3.8 | 4.5 | 60 | | BL-S50A-17B | BL-S50B-17B | ultra Blue | 470 | 3.8 | 4.5 | 45 | | BL-S50A-17W | BL-S50B-17W | Ultra White | / | 2.7 | 4.2 | 50 | |
