LED 7 Segment display

7 segment led display >> SINGLE DIGIT >> 0.52 inch single seven segment led display

Specification

SeriesBL-S52A-12,BL-S52B-12
Apperance:0.52 inch digit height(13.20mm)
Dimension: 12.60*17.50mm
Datasheet:

0.52 inch single seven segment led display 0.52 inch digit height(13.20mm) widthheight: 12.6017.50mm Single decimal point Single LED chip per segment Common anode or common cathode selected Low Current Operation excellent Character Appearance High L

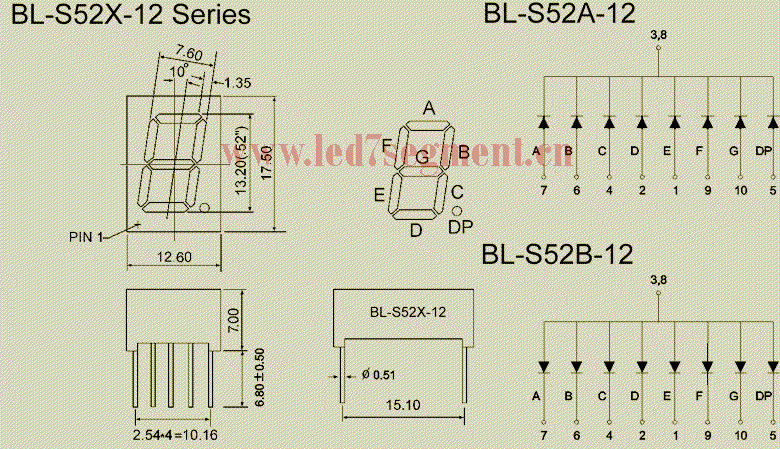

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S52A-12H BL-S52B-12H Red 700 2.25 2.6 2
BL-S52A-12UR BL-S52B-12UR Ultra Red 660 1.85 2.2 38
BL-S52A-12S BL-S52B-12S Hi Red 660 1.85 2.2 20
BL-S52A-12D BL-S52B-12D Super Red 660 1.85 2.2 30
BL-S52A-12E BL-S52B-12E Orange 635 2.1 2.5 25
BL-S52A-12UE BL-S52B-12UE Ultra Orange 630 2.1 2.5 27
BL-S52A-12UY BL-S52B-12UY Ultra Yellow 590 2.1 2.5 27
BL-S52A-12Y BL-S52B-12Y Yellow 585 2.1 2.5 25
BL-S52A-12UG BL-S52B-12UG Ultra Green 574 2.2 2.5 30
BL-S52A-12G BL-S52B-12G Green 570 2.2 2.5 25
BL-S52A-12PG BL-S52B-12PG Ultra Pure Green 525 3.8 4.5 40
BL-S52A-12UB BL-S52B-12UB ultra Blue 470 3.8 4.5 70
BL-S52A-12B BL-S52B-12B ultra Blue 470 3.8 4.5 50
BL-S52A-12W BL-S52B-12W Ultra White / 2.7 4.2 55
