LED 7 Segment display

| 7 segment led display >> SINGLE DIGIT >> 0.80 inch single seven segment led display , bi-color

Specification

SeriesBL-S80A-11XX,BL-S80B-11XX
Apperance:0.80 inch digit height(20.40mm)
Dimension: 20.00*27.70mm
Datasheet:

0.80 inch single seven segment led display 0.80 inch digit height(20.40mm) widthheight: 20.0027.70mm Double or single decimal point Orange+Green Bi-color selected Common anode or common cathode selected Low Current Operation excellent Character Appea

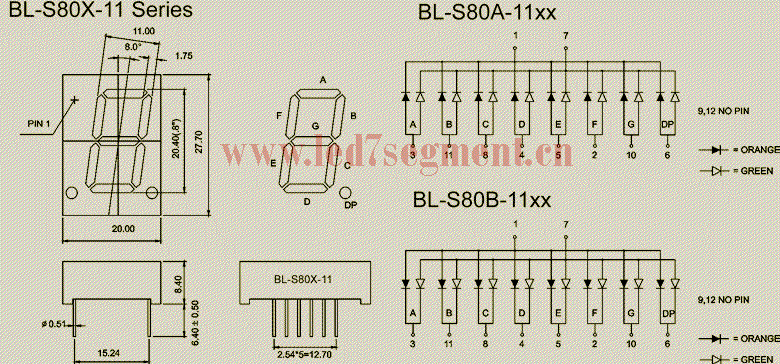

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-S80A-11EG BL-S80B-11EG Green 570 2.2 2.5 65
BL-S80A-11EG BL-S80B-11EG Orange 635 2.1 2.5 65
