LED 7 Segment display
| 7 segment led display >> SINGLE DIGIT >> 0.80 inch single seven segment led display
Specification
|
| Series | BL-S80A-14,BL-S80B-14 |
| Apperance: | 0.80 inch digit height(20.40mm) |
| Dimension: | 18.60*25.00mm |
| Datasheet: |  |
|
|
0.80 inch single seven segment led display
0.80 inch digit height(20.40mm)
widthheight: 18.6025.00mm
Single decimal point
Single LED chip per segment
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance
High L

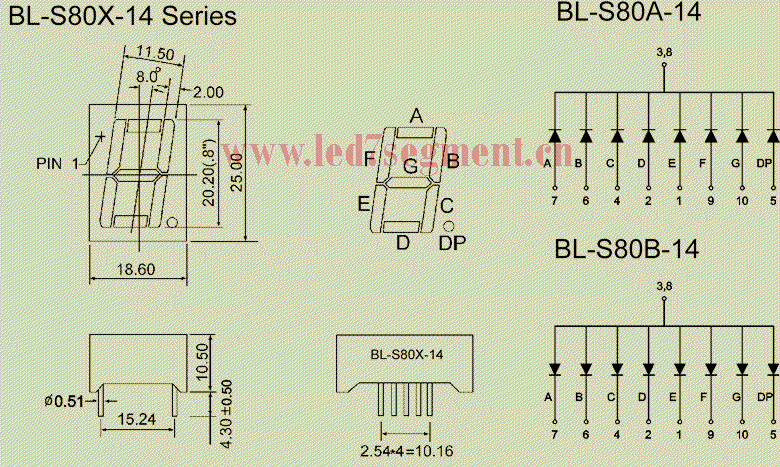

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-S80A-14H | BL-S80B-14H | Red | 700 | 2.25 | 2.6 | 5 | | BL-S80A-14UR | BL-S80B-14UR | Ultra Red | 660 | 1.85 | 2.2 | 85 | | BL-S80A-14S | BL-S80B-14S | Hi Red | 660 | 1.85 | 2.2 | 50 | | BL-S80A-14D | BL-S80B-14D | Super Red | 660 | 1.85 | 2.2 | 75 | | BL-S80A-14E | BL-S80B-14E | Orange | 635 | 2.1 | 2.5 | 65 | | BL-S80A-14UE | BL-S80B-14UE | Ultra Orange | 630 | 2.1 | 2.5 | 70 | | BL-S80A-14UY | BL-S80B-14UY | Ultra Yellow | 590 | 2.1 | 2.5 | 70 | | BL-S80A-14Y | BL-S80B-14Y | Yellow | 585 | 2.1 | 2.5 | 65 | | BL-S80A-14UG | BL-S80B-14UG | Ultra Green | 574 | 2.2 | 2.5 | 75 | | BL-S80A-14G | BL-S80B-14G | Green | 570 | 2.2 | 2.5 | 65 | | BL-S80A-14PG | BL-S80B-14PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 97.5 | | BL-S80A-14UB | BL-S80B-14UB | ultra Blue | 470 | 3.8 | 4.5 | 80 | | BL-S80A-14B | BL-S80B-14B | ultra Blue | 470 | 3.8 | 4.5 | 65 | | BL-S80A-14W | BL-S80B-14W | Ultra White | / | 2.7 | 4.2 | 80 | |
