LED 7 Segment display
| 7 segment led display >> BIG DIGIT >> 10 inch single big digit segment display
Specification
|
| Series | BL-SE1000A |
| Apperance: | 10.00 inch digit height(250.00mm) |
| Dimension: | 180.00*280.00mm |
| Datasheet: |  |
|
|
10.00 inch single seven segment led display
Big Segment Display
10.00 inch digit height(250.0mm)
widthheight: 180.00280.00mm
Single decimal point and a comma
Common anode or common cathode selected
Low Current Operation
excellent Character Appearance
High Li

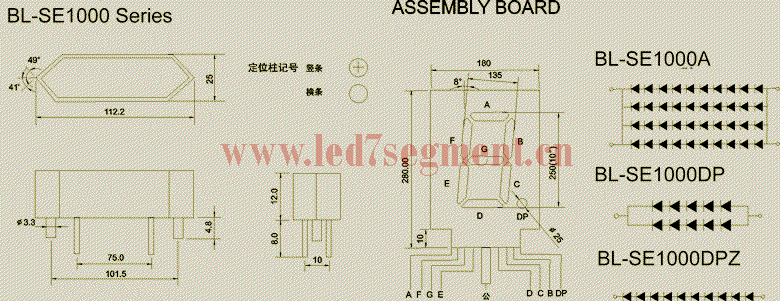

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-SE1000A-11H | BL-SE1000B-11H | Red | 700 | 2.25 | 2.6 | | | BL-SE1000A-11UR | BL-SE1000B-11UR | Ultra Red | 660 | 1.85 | 2.2 | 220 | | BL-SE1000A-11S | BL-SE1000B-11S | Hi Red | 660 | 1.85 | 2.2 | 180 | | BL-SE1000A-11D | BL-SE1000B-11D | Super Red | 660 | 1.85 | 2.2 | 210 | | BL-SE1000A-11E | BL-SE1000B-11E | Orange | 635 | 2.1 | 2.5 | 180 | | BL-SE1000A-11UE | BL-SE1000B-11UE | Ultra Orange | 630 | 2.1 | 2.5 | 190 | | BL-SE1000A-11UY | BL-SE1000B-11UY | Ultra Yellow | 590 | 2.1 | 2.5 | 190 | | BL-SE1000A-11Y | BL-SE1000B-11Y | Yellow | 585 | 2.1 | 2.5 | 150 | | BL-SE1000A-11UG | BL-SE1000B-11UG | Ultra Green | 574 | 2.2 | 2.5 | 210 | | BL-SE1000A-11G | BL-SE1000B-11G | Green | 570 | 2.2 | 2.5 | 200 | | BL-SE1000A-11PG | BL-SE1000B-11PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 260 | | BL-SE1000A-11UB | BL-SE1000B-11UB | ultra Blue | 470 | 3.8 | 4.5 | 200 | | BL-SE1000A-11B | BL-SE1000B-11B | ultra Blue | 470 | 3.8 | 4.5 | 185 | |
