LED 7 Segment display
| 7 segment led display >> THREE DIGITS >> 0.40 inch three seven segment led display
Specification
|
| Series | BL-T40A-32,BL-T40B-32 |
| Apperance: | 0.40 inch digit height(10.20mm) |
| Dimension: | 20.10*16.00mm |
| Datasheet: |  |
|
|
0.40 inch three seven segment led display
0.40 inch digit height(10.20mm)
widthheight:20.1016.00mm
Low Current Operation
excellent Character Appearance
High Light Output
Easy Mounting On PC Boards or Sockets
IC Compatible
Multicolor Available

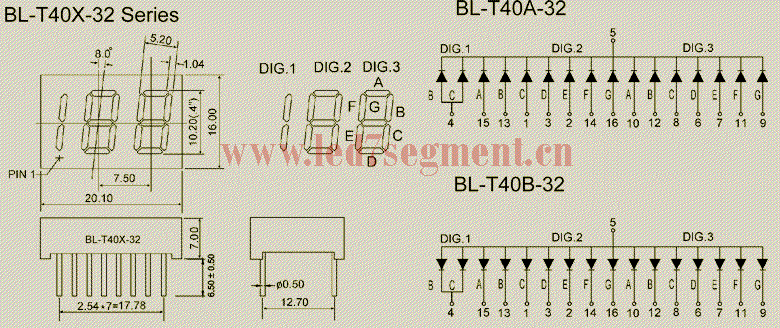

View Clear drawing
| Part No CC. | Part No CA. | Color | Wave length | (V) typ | (V) Max | Bright (mcd) | | BL-T40A-32H | BL-T40B-32H | Red | 700 | 2.25 | 2.6 | 9.5 | | BL-T40A-32UR | BL-T40B-32UR | Ultra Red | 660 | 1.85 | 2.2 | 115 | | BL-T40A-32S | BL-T40B-32S | Hi Red | 660 | 1.85 | 2.2 | 95 | | BL-T40A-32D | BL-T40B-32D | Super Red | 660 | 1.85 | 2.2 | 110 | | BL-T40A-32E | BL-T40B-32E | Orange | 635 | 2.1 | 2.5 | 60 | | BL-T40A-32UE | BL-T40B-32UE | Ultra Orange | 630 | 2.1 | 2.5 | 85 | | BL-T40A-32UY | BL-T40B-32UY | Ultra Yellow | 590 | 2.1 | 2.5 | 70 | | BL-T40A-32Y | BL-T40B-32Y | Yellow | 585 | 2.1 | 2.5 | 60 | | BL-T40A-32UG | BL-T40B-32UG | Ultra Green | 574 | 2.2 | 2.5 | 120 | | BL-T40A-32G | BL-T40B-32G | Green | 570 | 2.2 | 2.5 | 50 | | BL-T40A-32PG | BL-T40B-32PG | Ultra Pure Green | 525 | 3.8 | 4.5 | 180 | | BL-T40A-32UB | BL-T40B-32UB | ultra Blue | 470 | 3.8 | 4.5 | 90 | | BL-T40A-32B | BL-T40B-32B | ultra Blue | 470 | 3.8 | 4.5 | 50 | | BL-T40A-32W | BL-T40B-32W | Ultra White | / | 2.7 | 4.2 | 125 | |
