LED 7 Segment display

7 segment led display >> THREE DIGITS >> 0.52 inch three seven segment led display

Specification

SeriesBL-T52C-31,BL-T52D-31
Apperance:0.52 inch digit height(13.20mm)
Dimension: 37.80*17.50mm
Datasheet:

0.52 inch three seven segment led display 0.52 inch digit height(13.20mm) widthheight:37.8017.50mm Low Current Operation excellent Character Appearance High Light Output Easy Mounting On PC Boards or Sockets IC Compatible Multicolor Available Categor

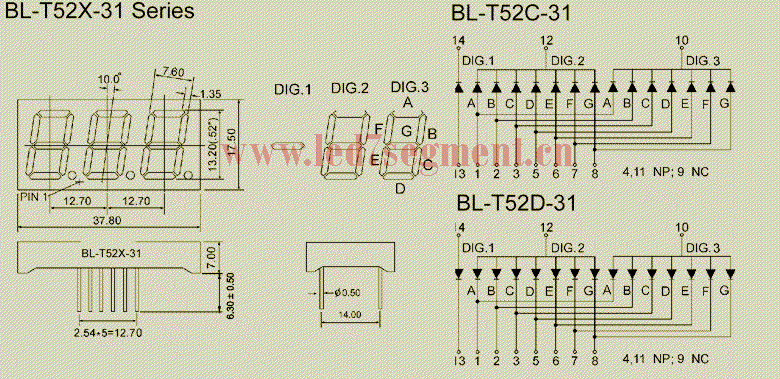

View Clear drawing

Part No CC. Part No CA. Color Wave length (V) typ (V) Max Bright (mcd)
BL-T52C-31H BL-T52D-31H Red 700 2.25 2.6 12
BL-T52C-31UR BL-T52D-31UR Ultra Red 660 1.85 2.2 130
BL-T52C-31S BL-T52D-31S Hi Red 660 1.85 2.2 120
BL-T52C-31D BL-T52D-31D Super Red 660 1.85 2.2 125
BL-T52C-31E BL-T52D-31E Orange 635 2.1 2.5 65
BL-T52C-31UE BL-T52D-31UE Ultra Orange 630 2.1 2.5 90
BL-T52C-31UY BL-T52D-31UY Ultra Yellow 590 2.1 2.5 75
BL-T52C-31Y BL-T52D-31Y Yellow 585 2.1 2.5 65
BL-T52C-31UG BL-T52D-31UG Ultra Green 574 2.2 2.5 125
BL-T52C-31G BL-T52D-31G Green 570 2.2 2.5 50
BL-T52C-31PG BL-T52D-31PG Ultra Pure Green 525 3.8 4.5 190
BL-T52C-31UB BL-T52D-31UB ultra Blue 470 3.8 4.5 90
BL-T52C-31B BL-T52D-31B ultra Blue 470 3.8 4.5 50
BL-T52C-31W BL-T52D-31W Ultra White / 2.7 4.2 130

[Print] [Return]

Specification

PDF DATASHEET
