LED 7 Segment display
| 7 segment
led display >> THREE
DIGITS >> 0.56 inch three seven segment led display
Specification
|
| Series |
BL-T56M-31,BL-T56M-31 |
| Apperance: |
0.56 inch digit height(14.20mm) |
| Dimension: |
37.80*19.00mm |
| Datasheet: |
 |
|
|
0.56 inch three seven segment led display
0.56 inch digit height(14.20mm) widthheight:37.8019.00mm Low Current Operation
excellent Character Appearance High Light Output Easy Mounting On PC Boards
or Sockets IC Compatible Multicolor Available Categor

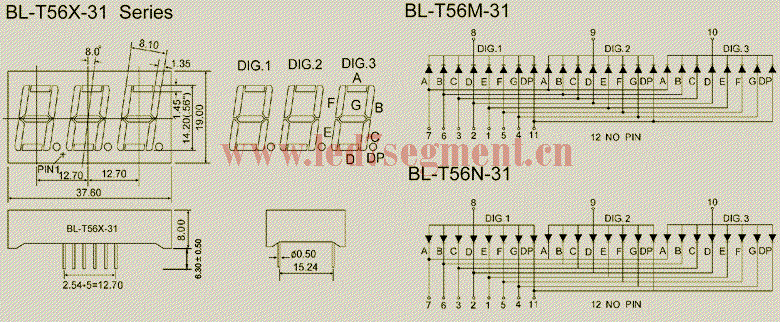

View
Clear drawing
| Part No CC. |
Part No CA. |
Color |
Wave length |
(V) typ |
(V) Max |
Bright (mcd) |
| BL-T56M-31H |
BL-T56N-31H |
Red |
700 |
2.25 |
2.6 |
12 |
| BL-T56M-31UR |
BL-T56N-31UR |
Ultra Red |
660 |
1.85 |
2.2 |
130 |
| BL-T56M-31S |
BL-T56N-31S |
Hi Red |
660 |
1.85 |
2.2 |
120 |
| BL-T56M-31D |
BL-T56N-31D |
Super Red |
660 |
1.85 |
2.2 |
125 |
| BL-T56M-31E |
BL-T56N-31E |
Orange |
635 |
2.1 |
2.5 |
65 |
| BL-T56M-31UE |
BL-T56N-31UE |
Ultra Orange |
630 |
2.1 |
2.5 |
90 |
| BL-T56M-31UY |
BL-T56N-31UY |
Ultra Yellow |
590 |
2.1 |
2.5 |
75 |
| BL-T56M-31Y |
BL-T56N-31Y |
Yellow |
585 |
2.1 |
2.5 |
65 |
| BL-T56M-31UG |
BL-T56N-31UG |
Ultra Green |
574 |
2.2 |
2.5 |
125 |
| BL-T56M-31G |
BL-T56N-31G |
Green |
570 |
2.2 |
2.5 |
50 |
| BL-T56M-31PG |
BL-T56N-31PG |
Ultra Pure Green |
525 |
3.8 |
4.5 |
190 |
| BL-T56M-31UB |
BL-T56N-31UB |
ultra Blue |
470 |
3.8 |
4.5 |
100 |
| BL-T56M-31B |
BL-T56N-31B |
ultra Blue |
470 |
3.8 |
4.5 |
50 |
| BL-T56M-31W |
BL-T56N-31W |
Ultra White |
/ |
2.7 |
4.2 |
130 |
|
